Purchase Notes

Please Note That Our 100 Watt Flexible Solar Panel Product is being upgraded.You may received different size product.

New Flexible Product(Style 3):
Model:RGN33-100
Product Size: 975x530mm
Maximum Power(Pmax): 100W
Maximum Power Voltage(Vmp):18.0V
Maximum Power Current (Imp):5.50A
Open-Circuit Voltage (Voc): 21.8V
Short-Circuit Current (Isc):5.83A

New Flexible Product(Style 2):
Model:RGN36-100
Product Size: 995x500mm
Maximum Power(Pmax): 100W
Maximum Power Voltage(Vmp):18.0V
Maximum Power Current (Imp):5.50A
Open-Circuit Voltage (Voc): 21.8V
Short-Circuit Current (Isc):5.83A

REMOTE AREA
the zip code in Spain that starts with 35, 38, 51, 52.the zip code in France that starts with 97
the zip code in Portugal that starts with 9.
For local express company,above zone are remote area,that means there is no shipping service.Please not place order with above address,thanks.

CUSTOMS FEE
If you are United Kingdom/Switerland customer,the parcel may be charged Customs Duty/Import VAT/Clearance Fee by local border crossing inspection institution，no matter ship from Europe or China.Please notice.

Feature

Easy to use:

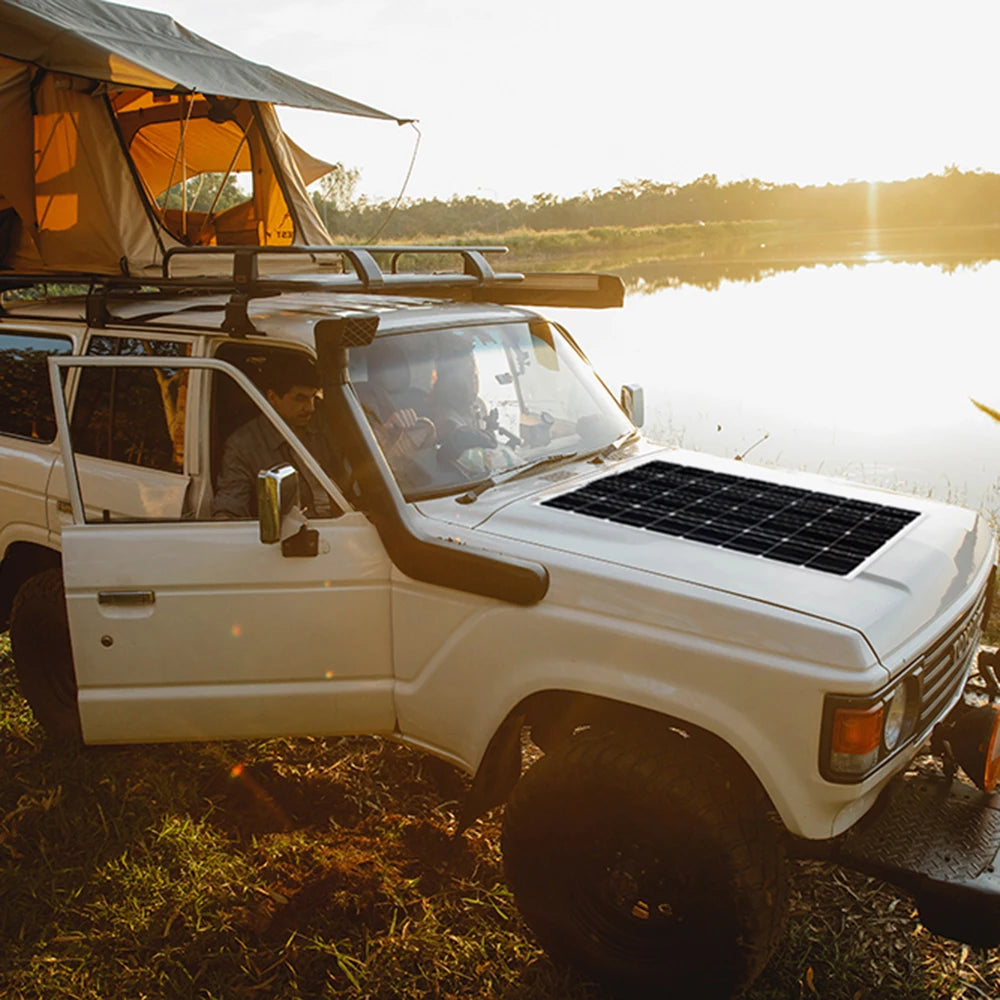

This product is a semi-flexible solar panelthat can be bent up to 30 degrees. It is suitable for mounted on an irregular smooth surfaces such as RV roofs, boats, tents, Yacht, vaulted roofs, etc.

High efficiency, Light weight:
Only 2.5mm thick, weight 2.02kg, easy to hang, disassemble and carry.

Easy to install:
Metal holes in the four corners of the product for fixing screws and mounting. Each solar panel has been tested several times.

The junction box in front of the solar panel has a Schottky diode built in to prevent reverse current.

The solar panel operates at 18V. Please purchase a solar controller to charge the battery.

Packing List

100W solar panel packing listing:
1* 100W flexible solar panel

Specification

Maximum Power(Pmax): 100W
Maximum Power Voltage(Vmp):16.00V
Maximum Power Current (Imp): 6.25A
Open-Circuit Voltage (Voc): 19.2V
Short-Circuit Current (Isc): 6.87A
Maximum System Voltage: DC1000V
Weight: 1.91KG
Dimensions: 1050*530*2.5mm

Product Detail

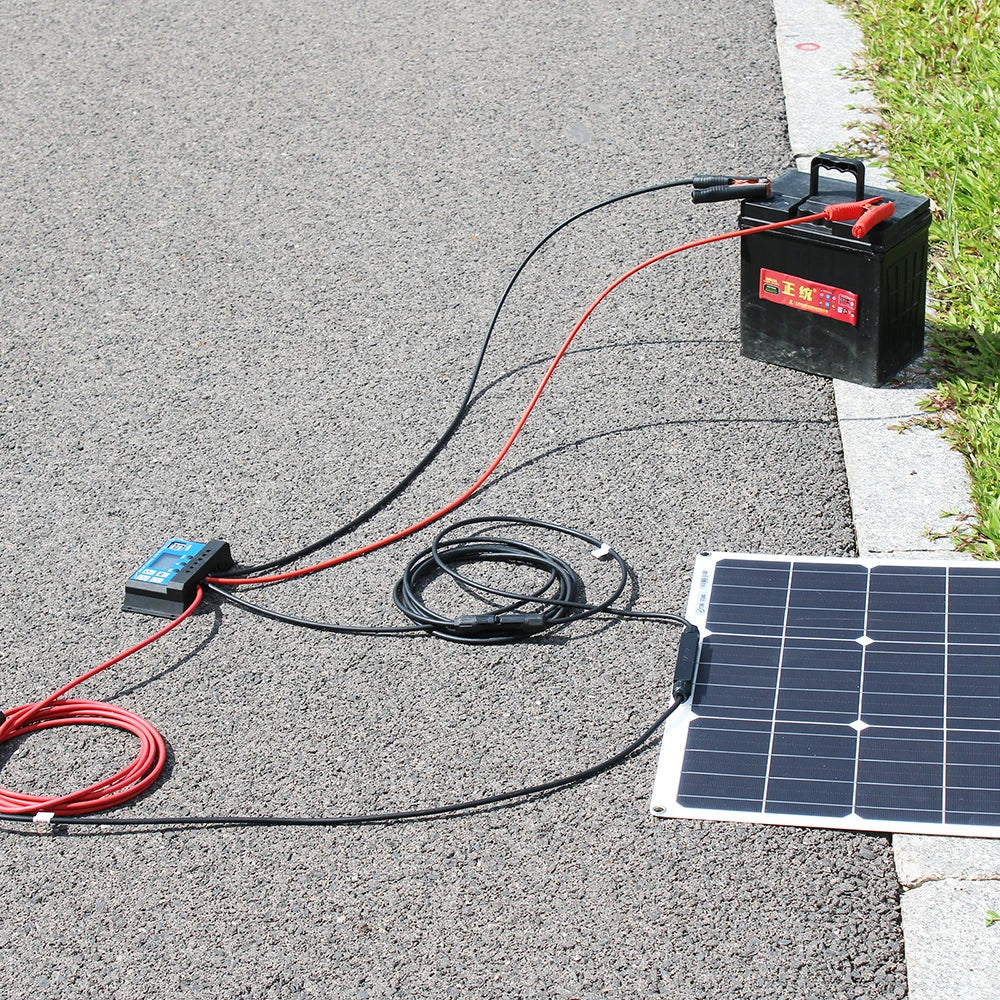

solar panel kit/system Connection Diagram

Connecting your panels in series increases the voltage level and controllers accept higher voltage input.Wiring panels in parallel increase current,does not increase voltage.

1.First wiring,connect the controller to the battery.

First connect cable with alligator clips to controller by screwdriver.Then connect alligator clips(black ) to the negative pole of the battery, next connect alligator clips (red) to the positive pole of the battery,pay attention to the positive and negative poles.After correct connection, the controller will display the voltage parameters of battery.

2.Second wiring, connect the flexible solar panels to the controller.

First connect extend cable to the controller by screwdriver.Then connect connect parallel adapter to the solar panel.If there is only one panel, please ignore this step.Next connect parallel adapter to extend cable.taking care when connecting & disconnecting the connector to avoid damage.After right connection,the controller will display the solar panel is charging the battery.

3. The third step is to connect the DC load to the controller

4. Forth step, connect the invertor to the battery for AC output
