SPECIFICATIONS

AH: 60A MPPT-Controller

Application: Home,Camping/Hiking, Home/Garden, Recreational Vehicle (RV)

Certification: None

Charging Mode: MPPT (Maximum Power Point Tracking)

Current Output: 40A/60A

Current Rating: Greater Than 10 A

Current Type: AC/DC

Features: All Daylight Conditions, Maintenance Free, Monocrystalline

Load Power (W): 3120W

Model Number: L03APDMPPT60A-1

Output Voltage (V): 12v

Resistance Properties: Corrosion Resistant

Solar Power (W): 3120W

Solar Technology: Monocrystalline

Specification: Normal

System Configuration: Off-Grid

Type: Solar Panel Kit

Voltage: 12v/24v/36v/48v

Work Time (h): 24

[ Wide Range of Input & Output ]

Compatible with 12V-48V DC input, it's able to handle maximum of 780W(12V)/3120W(48V) input solar array, and can draw maximum of 60A output current to battery bank

[ 99% Efficient MPPT Technology ] Maximum Power Point Tracking technology with a high tracking efficiency of up to 99% and peak conversion efficiency of 98%. It can keep a stable charging current even on cloudy days, making no waste of any sunlight

[ Compatible with All Kinds of Batteries ]

It's able to charge and discharge different kinds of 12/24/36/48V battery banks, including Gel, AGM, Lithium, LiFePO4, Flooded and NCM/NCA batteries

[ OLED Screen for Real-time Monitoring ]

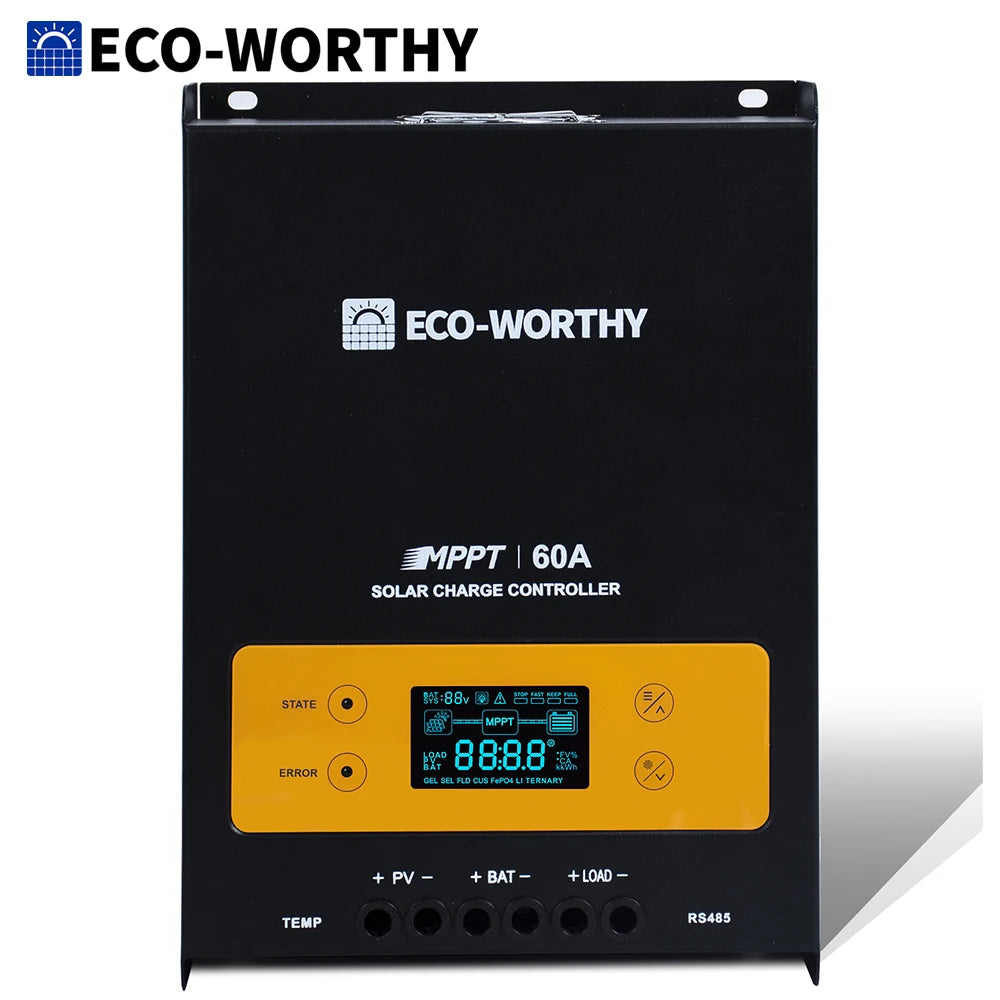

Equipped with OLED screen, which can dispaly the status of PV voltage, battery voltage, charging current, charging power, and the button can be used to change the battery's type

[ Reliable Electronic Protections ]

It has multiple protections to prevent those circuit issues, including Reverse Polarity, Short-Circuit, High Temperature, Over-Current, and Over-Voltage/Low-Voltage. Prevent explosions and fire conditions, keep the controller safe during working

[ Requires Wireless Monitor ]

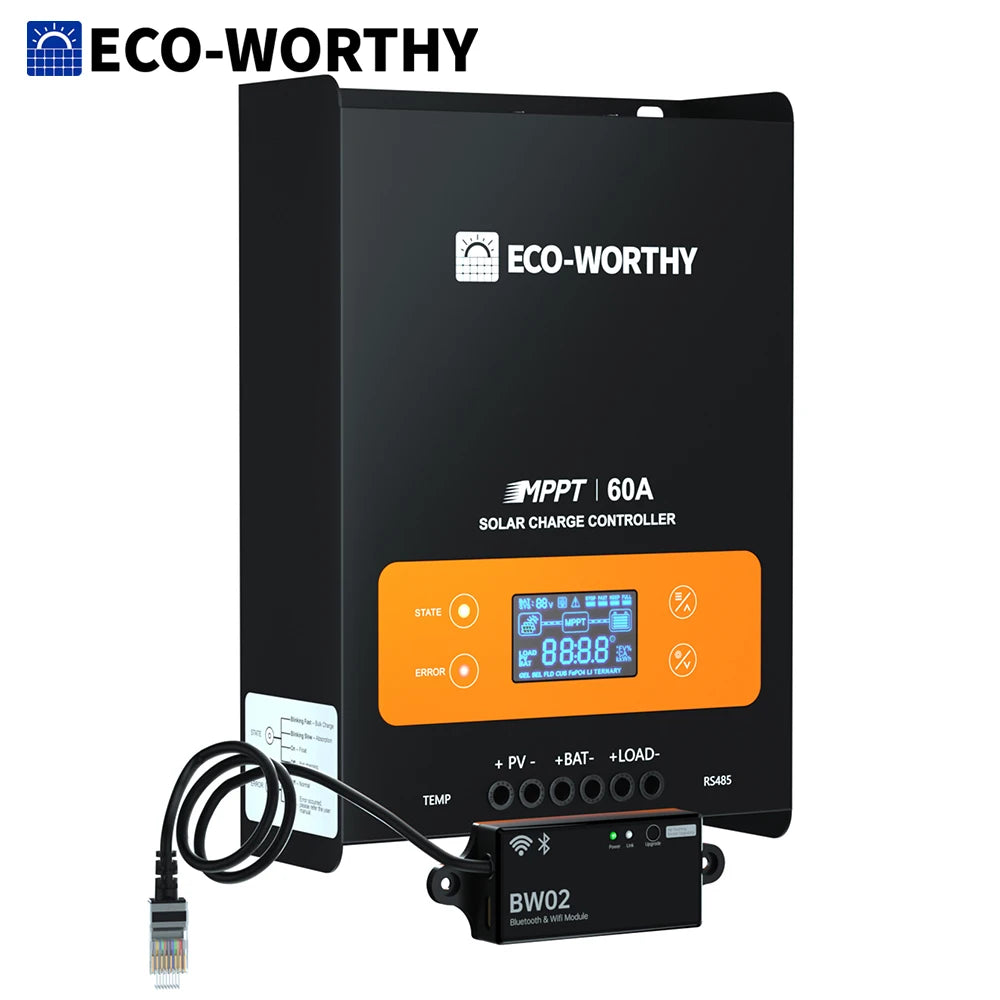

You need to purchase ECO-WORTHY Bluetooth Module 5.0 for real-time monitoring of solar panels, batteries, load status and other power generation data
