Packing List

100W Solar Panel= 1 pcs 100W flexible solar panel

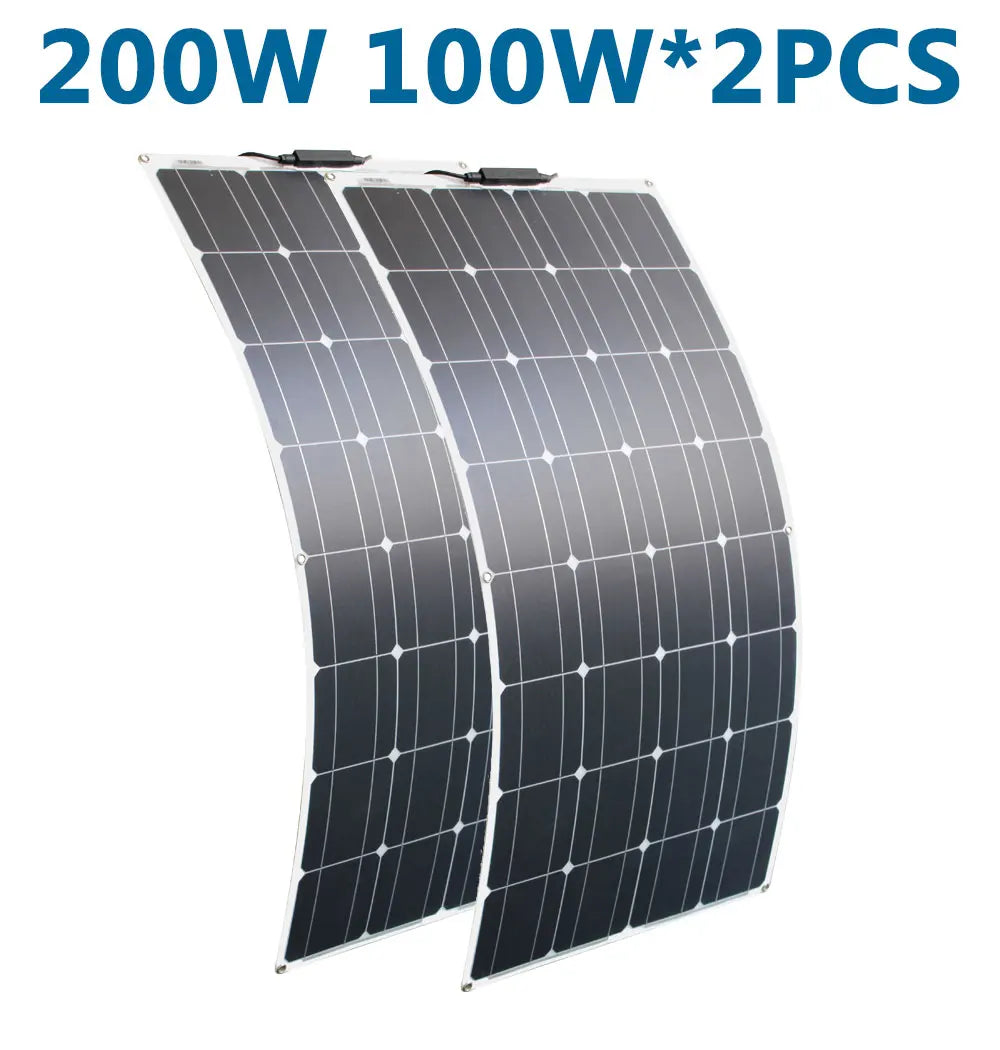

200W Solar Panel= 2 pcs 100W flexible solar panel
300W Solar Panel= 3 pcs 100W flexible solar panel

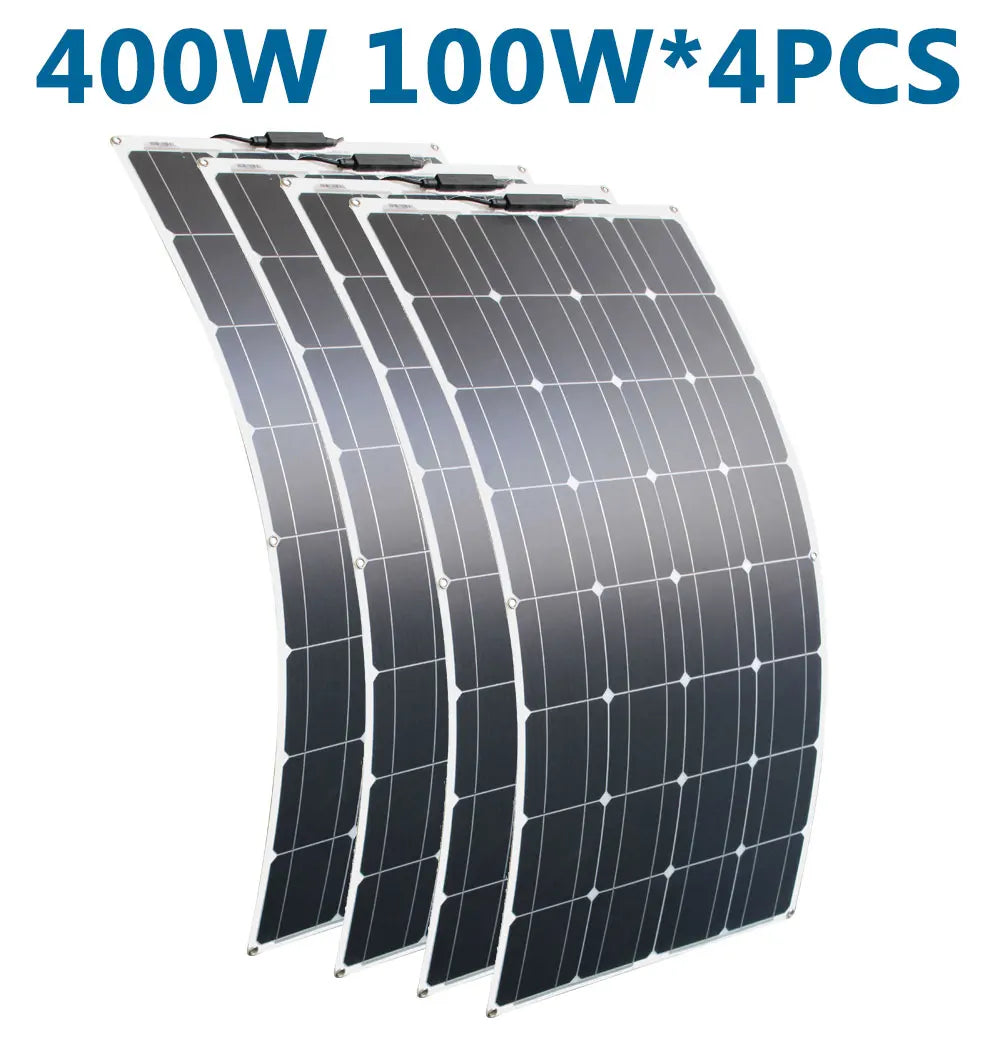

400W Solar Panel= 4 pcs 100W flexible solar panel

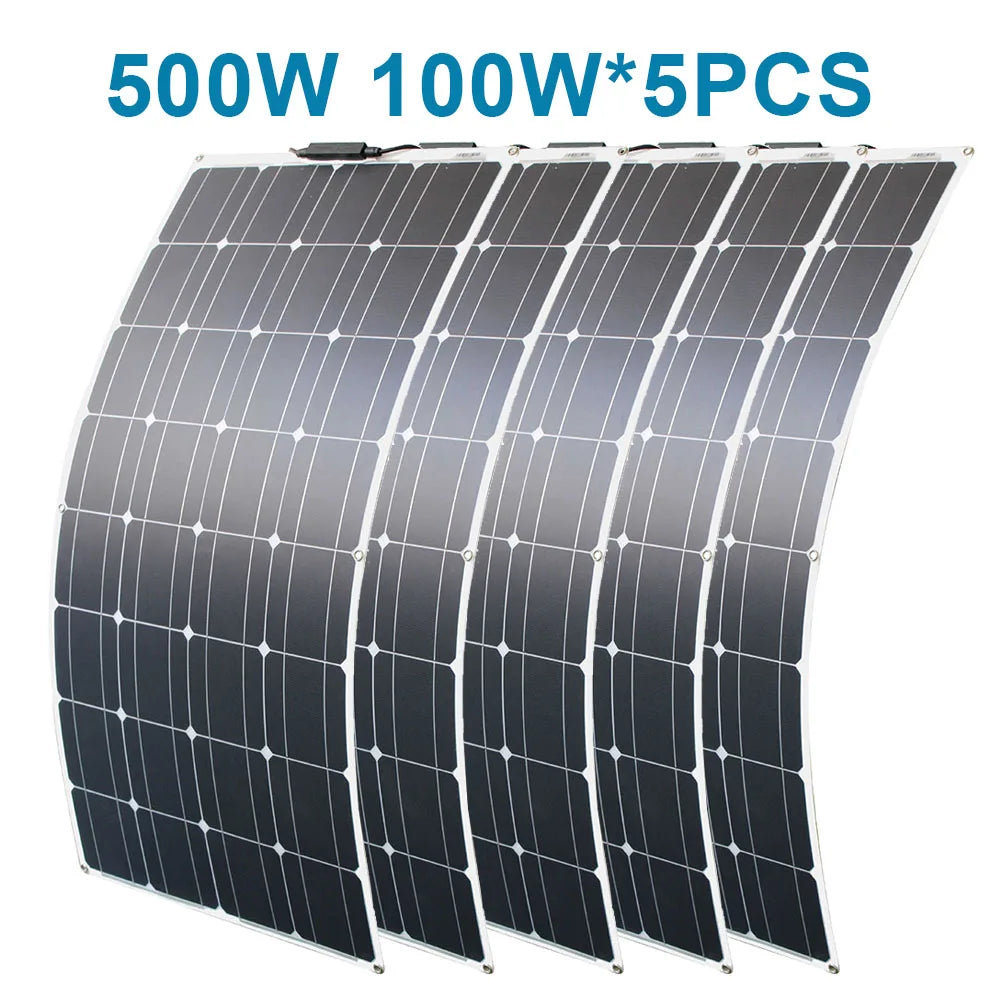

500W Solar Panel= 5 pcs 100W flexible solar panel

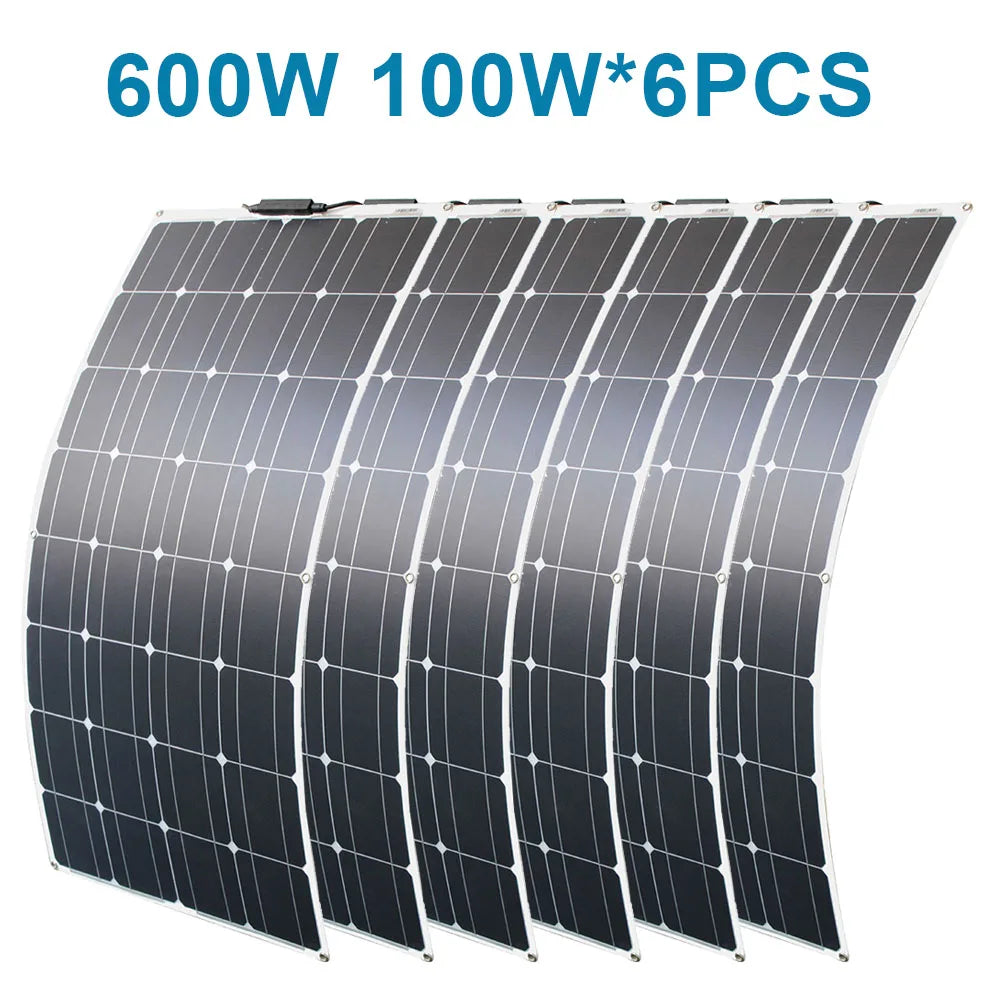

600W Solar Panel= 6 pcs 100W flexible solar panel

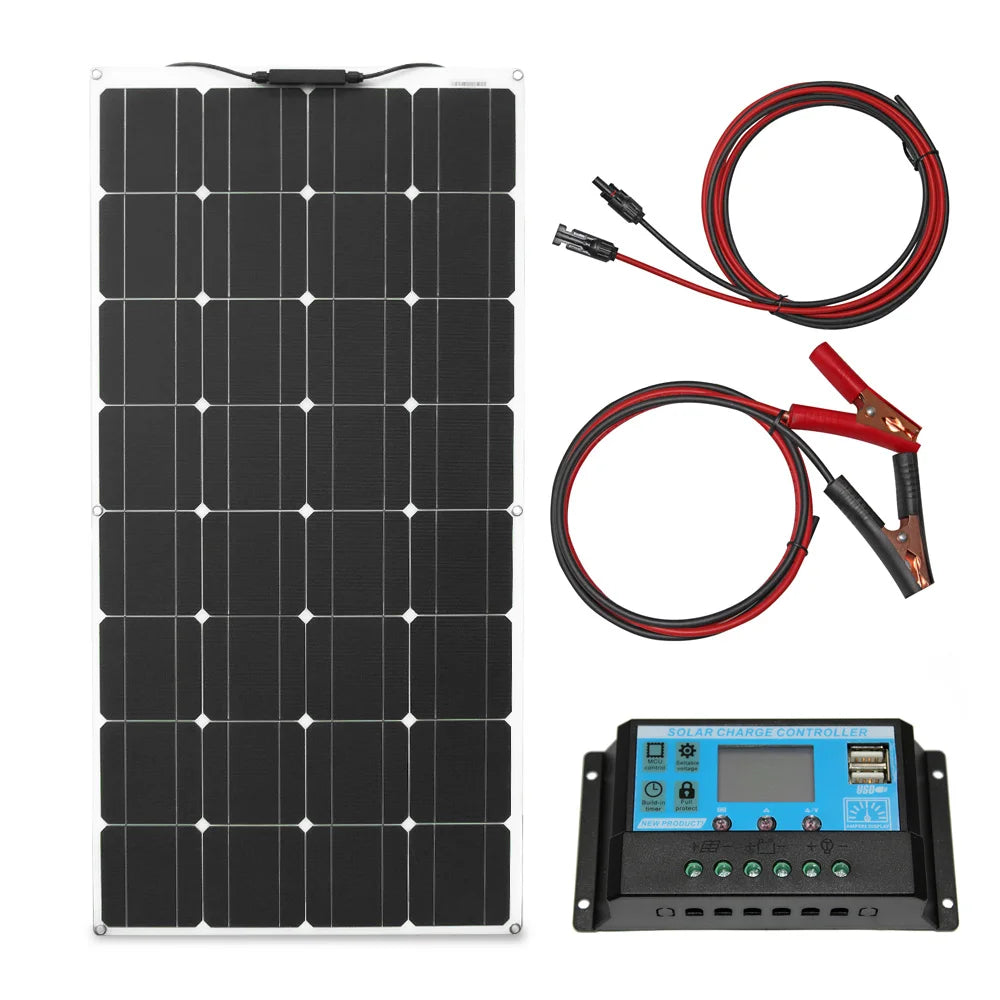

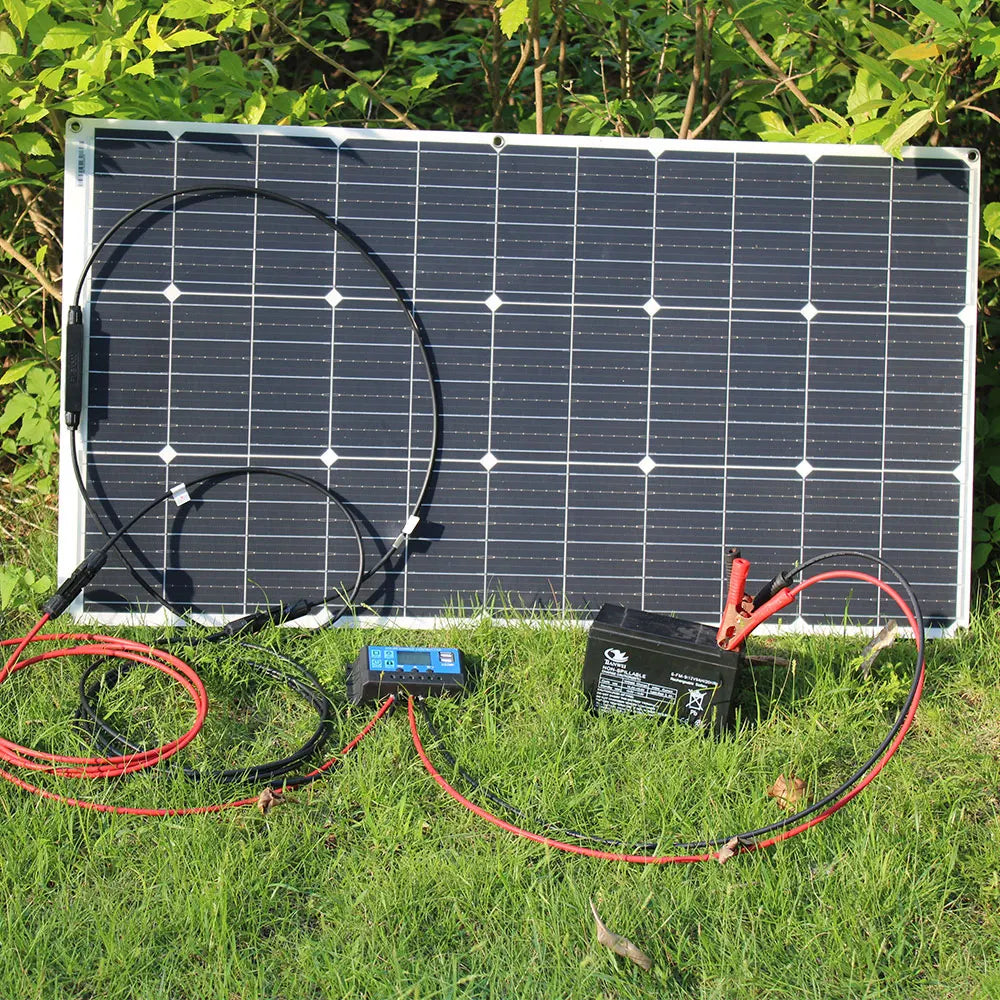

100w solar panel system packing list

1pcs 100w flexible solar panel
1pcs 10A 12V/24V solar panel controller
1set cable with battery clips
1set cable with PV solar connector

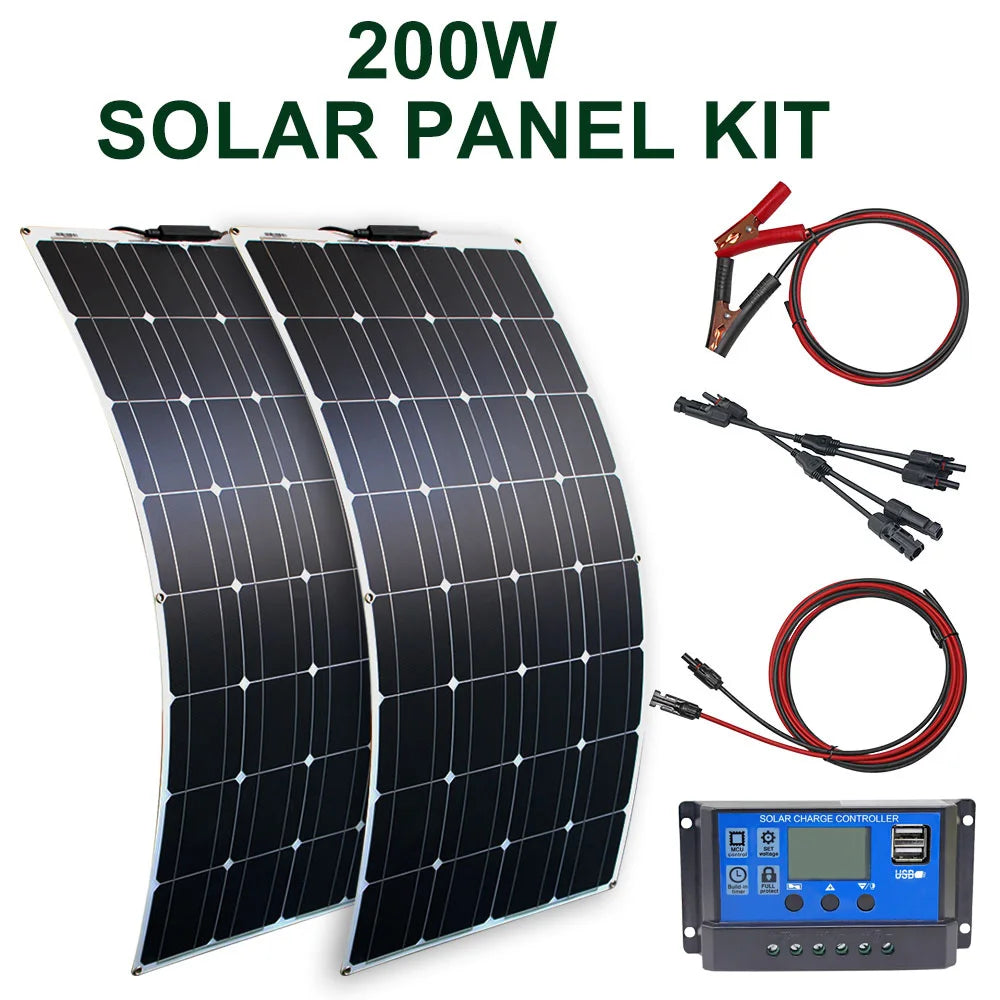

200w solar panel system packing list

2pcs 100w flexible solar panel
1pcs 20A 12V/24V solar panel controller
1set cable with battery clips
1set cable with PV solar connector
1pair 2 in 1 solar adapter

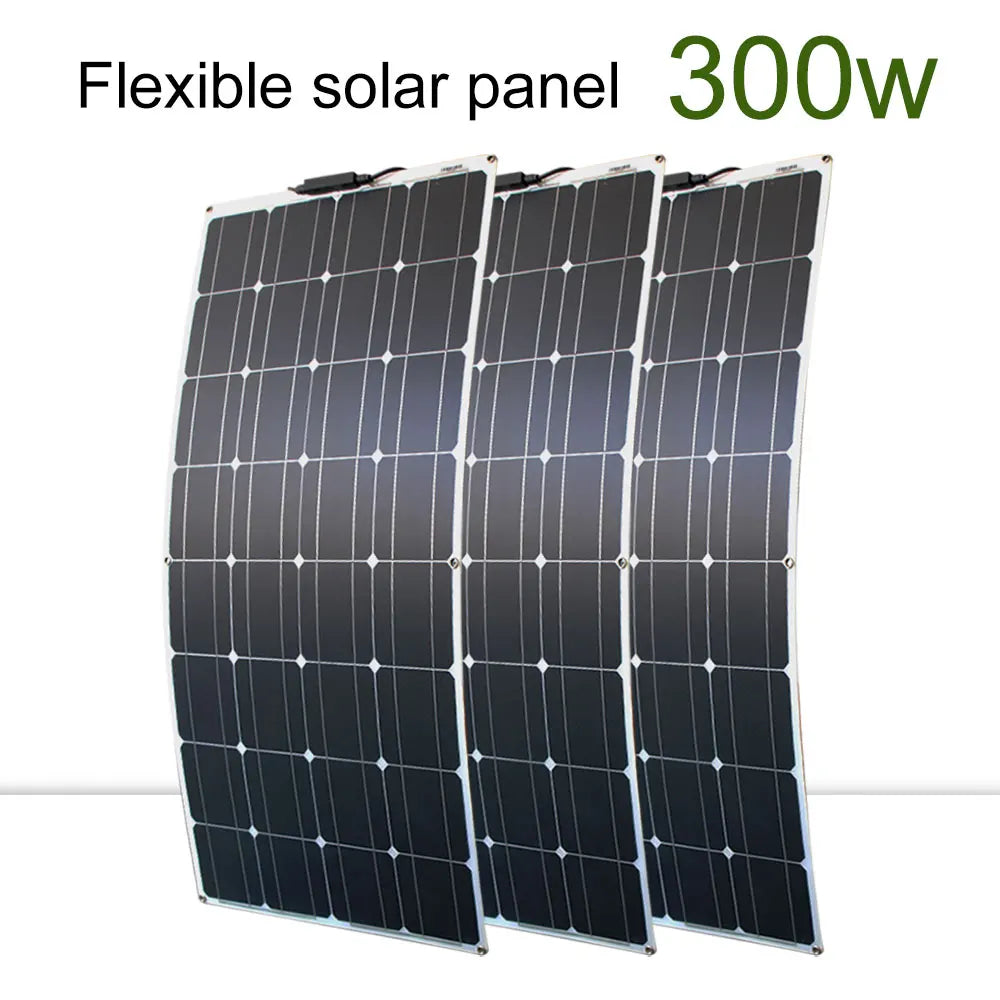

300w solar panel kit packing list

100W 16V solar panel *3
30A 12V/24V solar charger regulator *1
3 meter extend cable *1
1 meter cable with alligator clips *1
3-in-1 PV parallel adapter *1

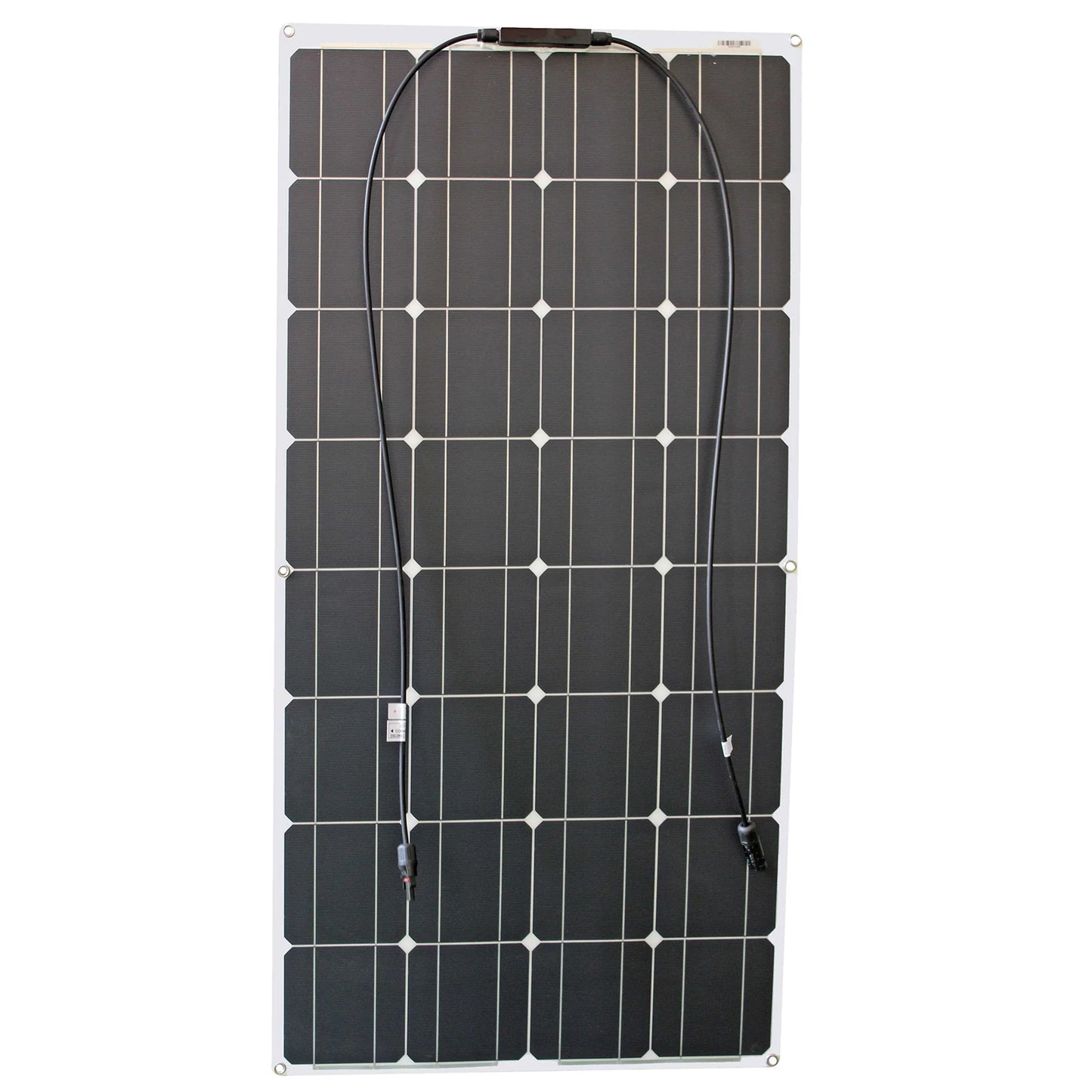

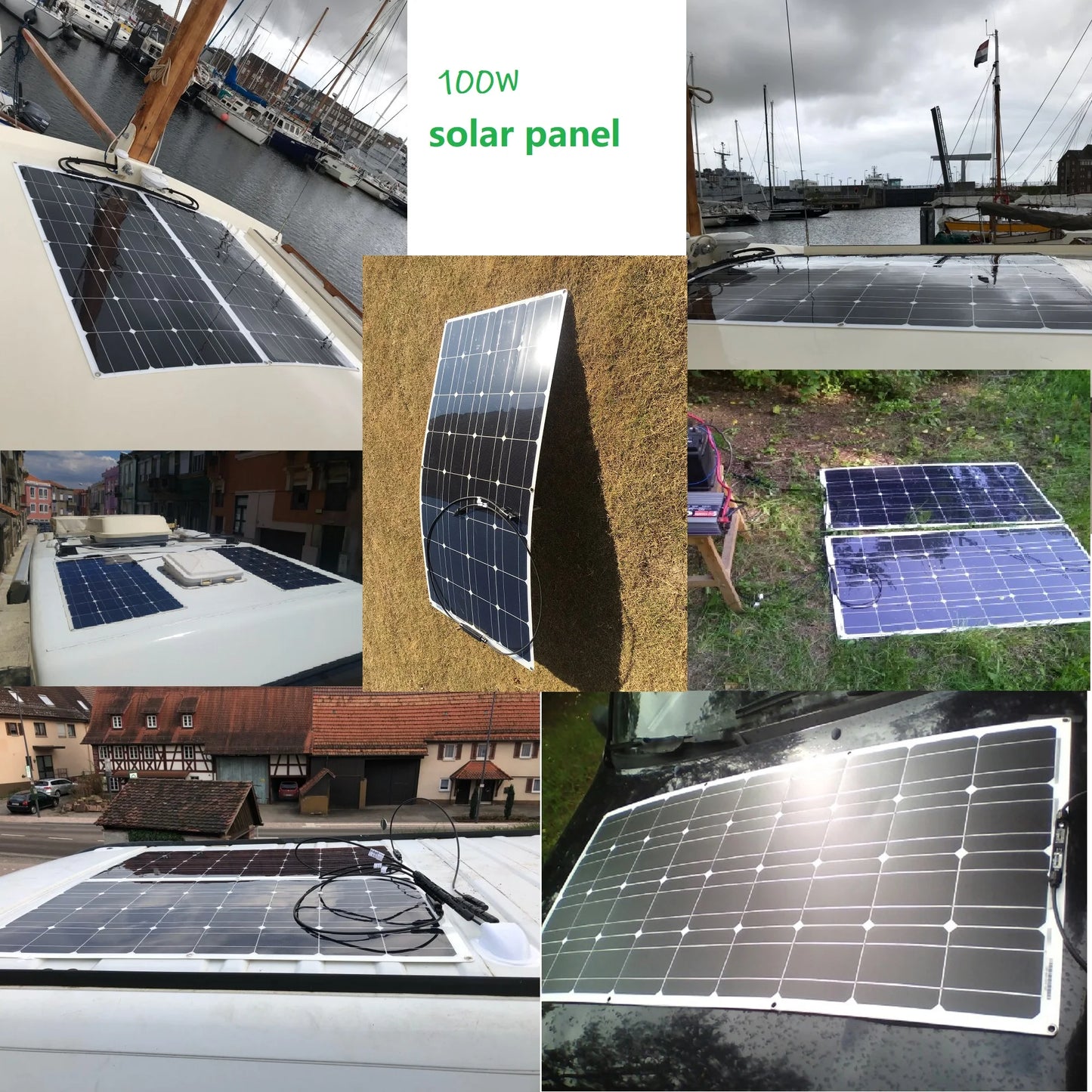

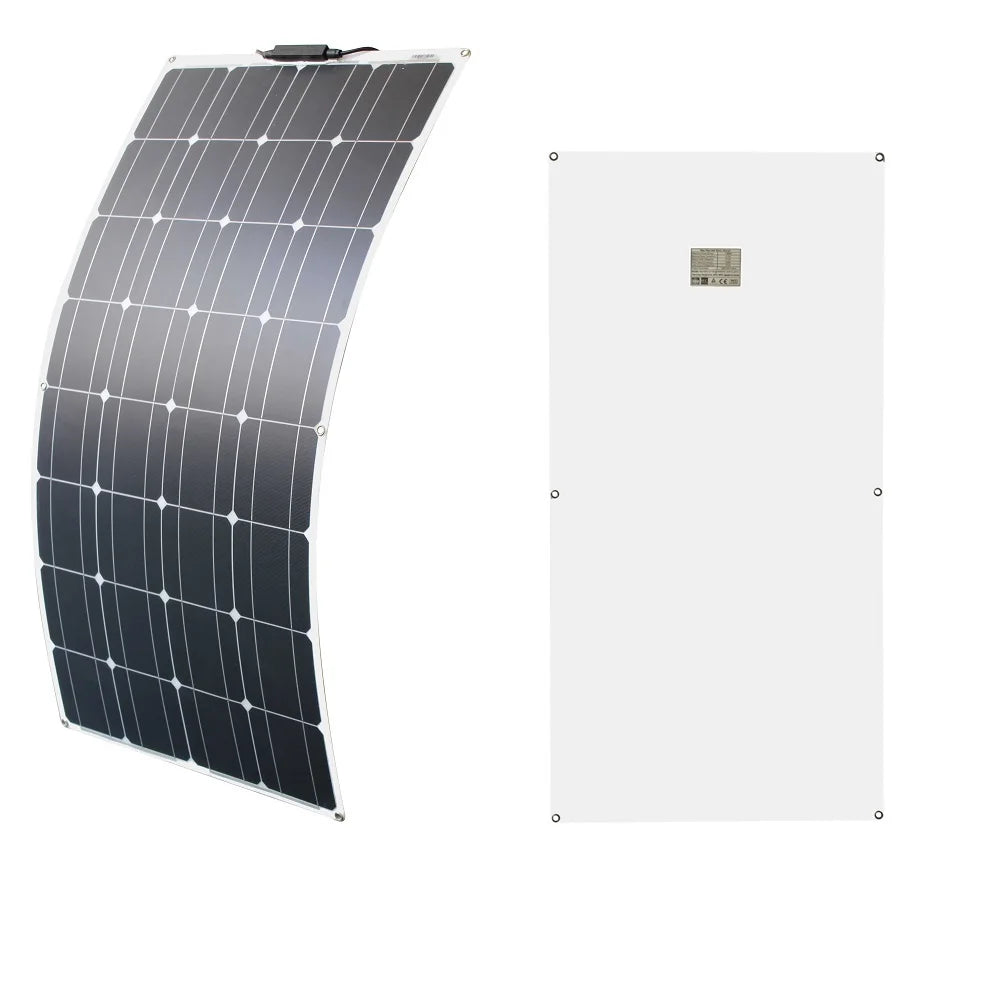

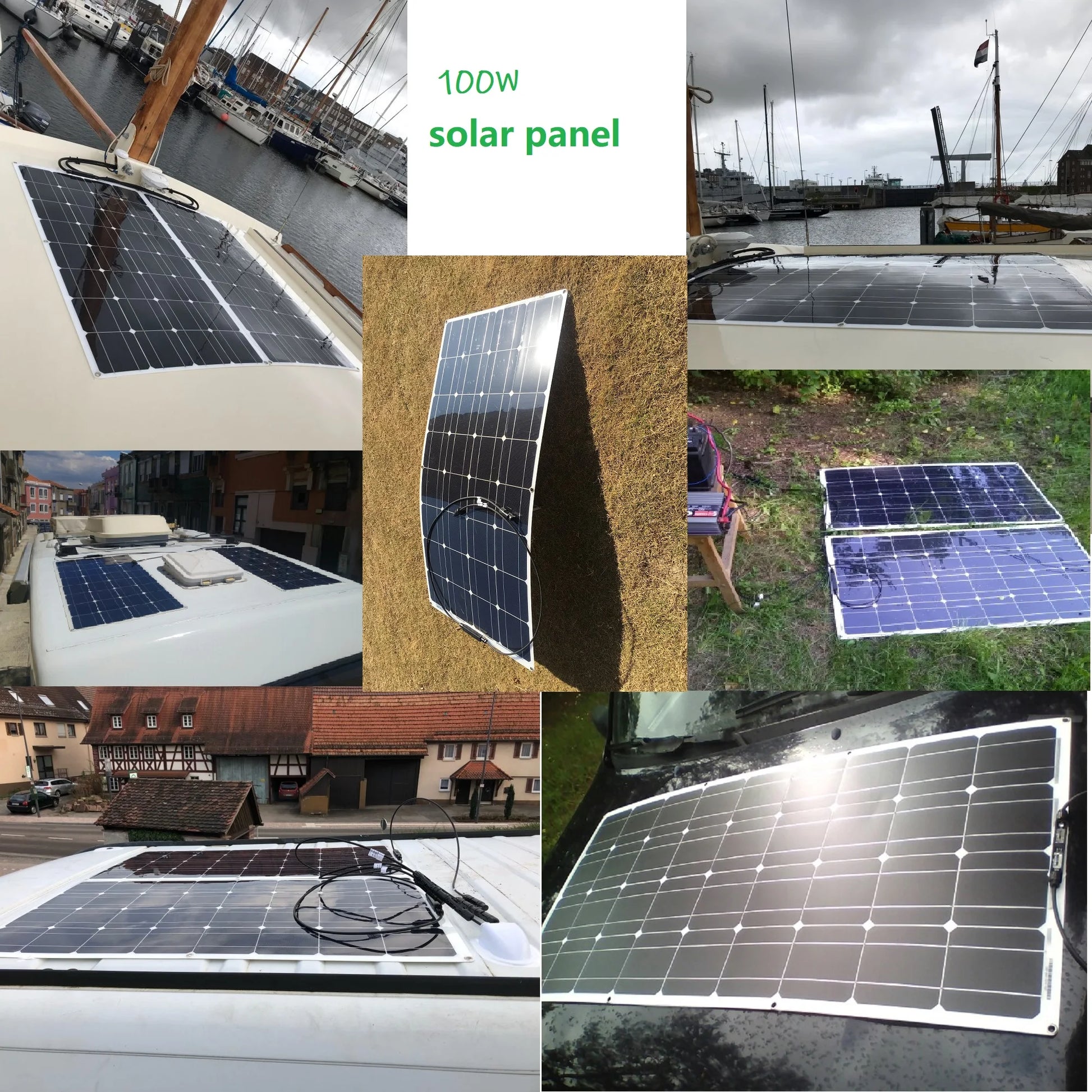

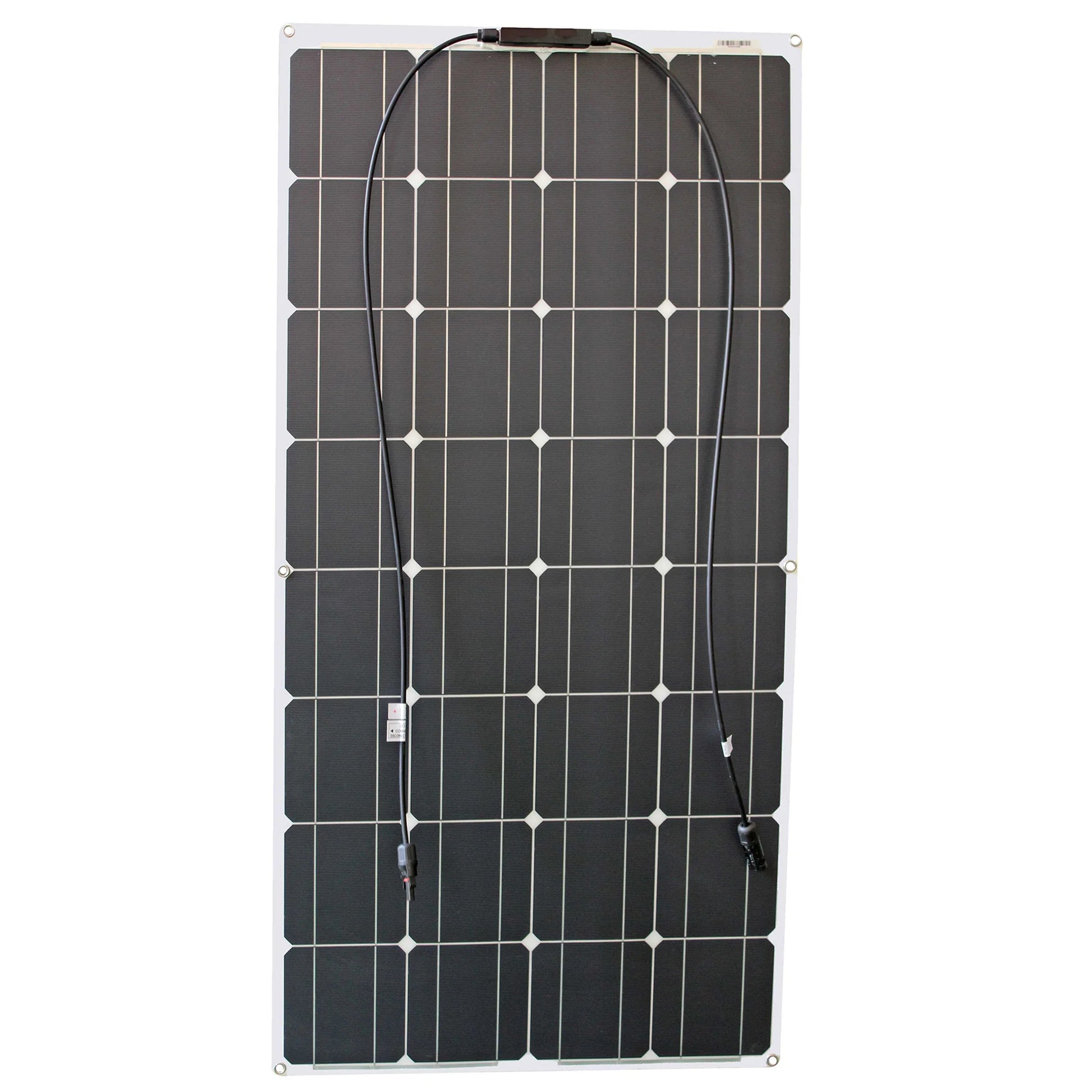

  Different with traditional solar panels which are rigid and often enclosed in tempered glass, the 100W Flexible Solar Panel is anything but traditional. The 100W Flexible Solar Panel is thin and capable of flexing up to 30 degrees that can easily be installed on curved surfaces, high efficiency up to 21% with small size for big power output, light weight just 1.9kg(±0.1kg) only a quarter of its traditional 100W glass solar panel. This panel can also be used for various applications, including providing power on a boat, van, golf car, tricycle, tent roof, even though hanged on window to power the lights and other DC applications. The 100W solar panel can charge the 12V or 24V battery or charge the 3.7V, 6V, 9V devices with a regulator。

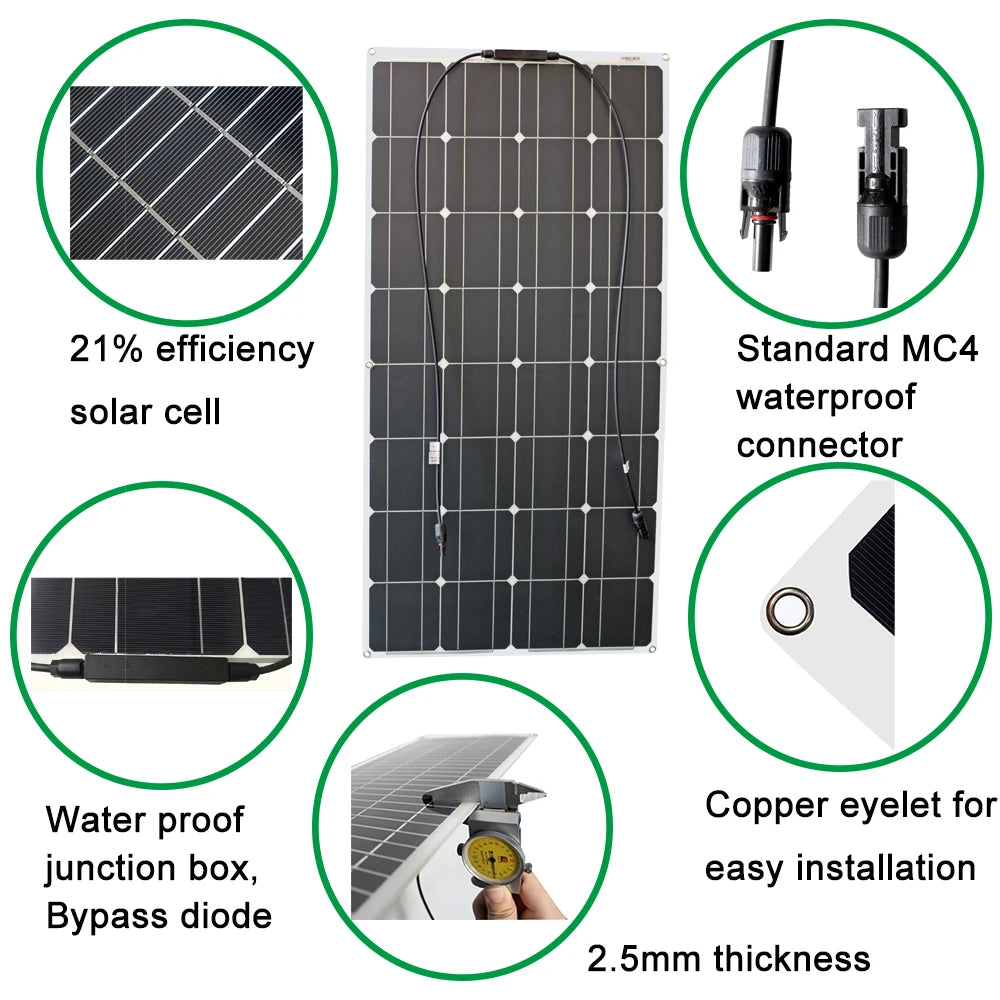

Advantages

High Efficient
High solar cell efficiency: Monocrystalline 21%

Protection

Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments

Extremely Flexible

This panel is capable of meeting a wide range of applications where standard panels can be inconvenient to mount, such as on the curved roof of an airstream

Ultra Lightweight

Thanks to advanced polymer materials, this product weighs 70% less than conventional solar panels, making transportation and installation a breeze

Super Thin

Hardly noticeable, the 100W Lightweight Panel laid flat is only a tenth of an inch tall! Approximately 95% thinner than its rigid counterpart, this panel is ideal for a stealthy solar setup

Highly Durable

Rigorously tested, the 100W panel was designed to withstand extreme wind and snow loads

Easy to install: Metal holes in the corners of the product for fixing screws and mounting.

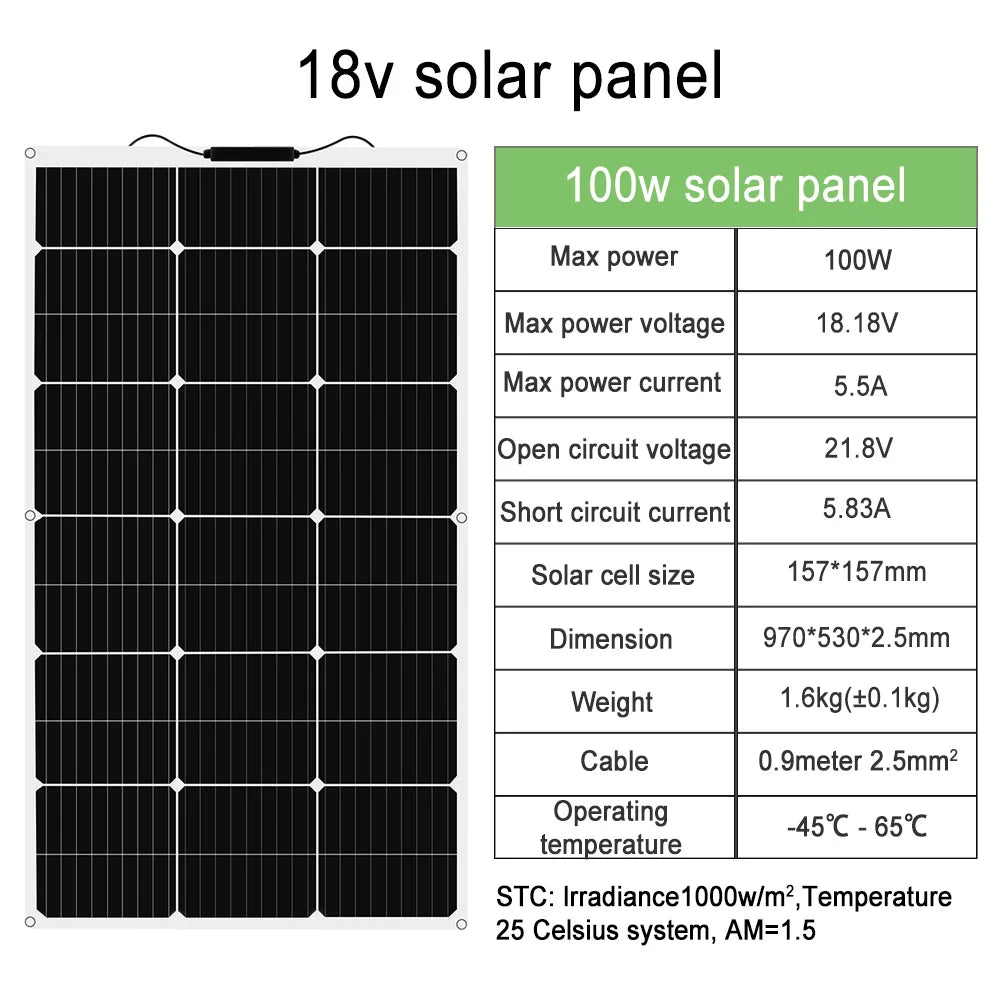

Electrical Characteristics

Max Power                                          100W
Max Power voltage                                 18.18V
Max Power Current                              5.5A
Open Circuit Voltage                            21.8V
Short Circuit Current                            5.83A
Number of cells in Series                  33
Cell size                                                157X157mm
Mechanical Characteristics
Dimension                                            970X530X2.5mm
Weight                                            1.7kg(±0.1kg)
Cable                                                0.9 meter 2X2.5mm
Thermal Characteristics
Temperature coefficient of Pmax        -0.38%/℃
Temperature coefficient of Voc       -60.5mV/℃
Temperature coefficient of Isc           2.2mA/℃
NOTC                                                47℃+/-2℃
Operating Temperature                        -20℃ - +65℃
