SPECIFICATIONS

AC Input: (220-240)/(110-120)V-6.8A Max

AC Output: 4x(220-240)/(110-120V)V 1600W Max (Surged 3200W)

Application: Others

Bluetooth: Support

Car Charging Output: 12V==10A, 120W Max

Car Input: 12V/24V DC

Certification: CE,pse,FCC,RoHS,weee,UL

Display screen: Yes

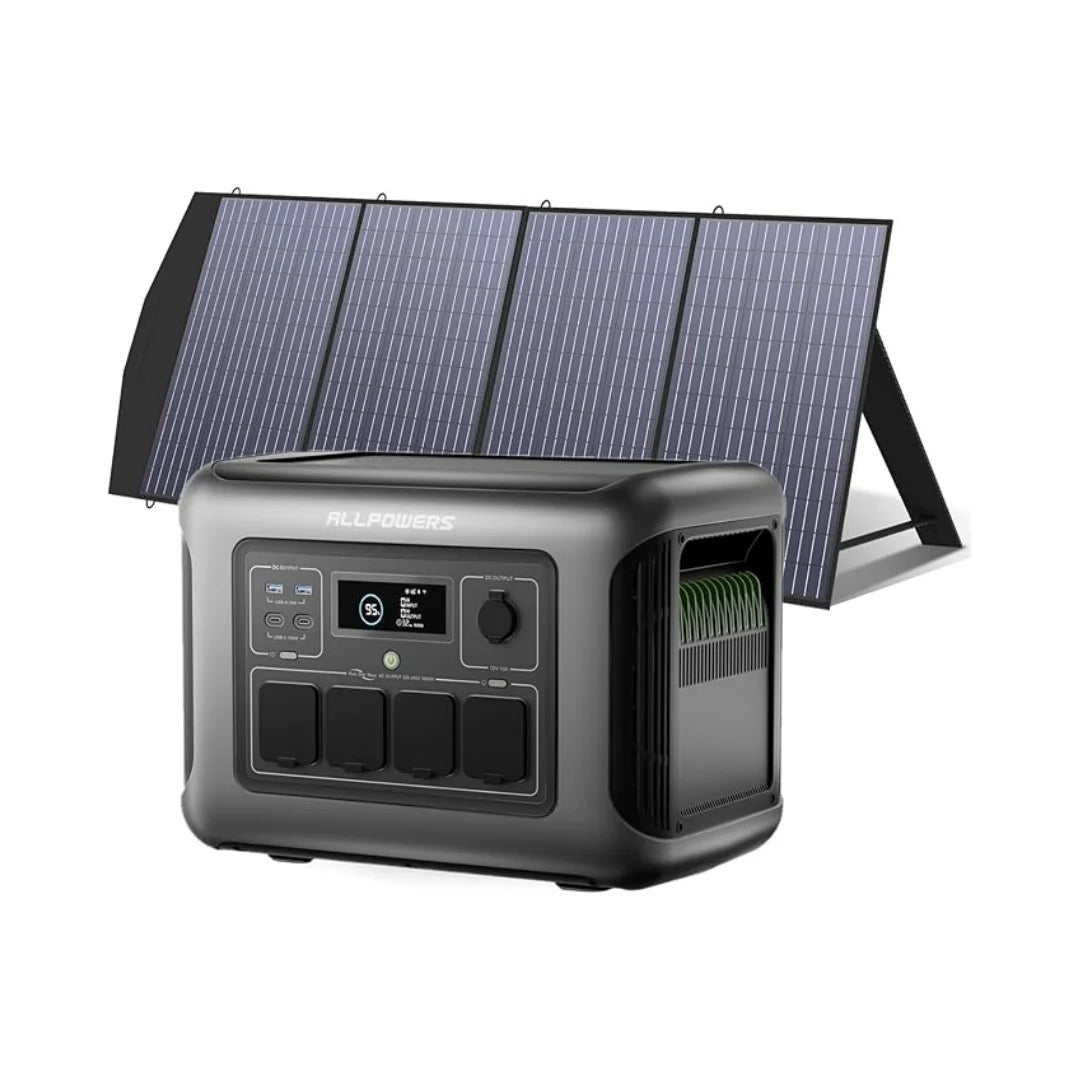

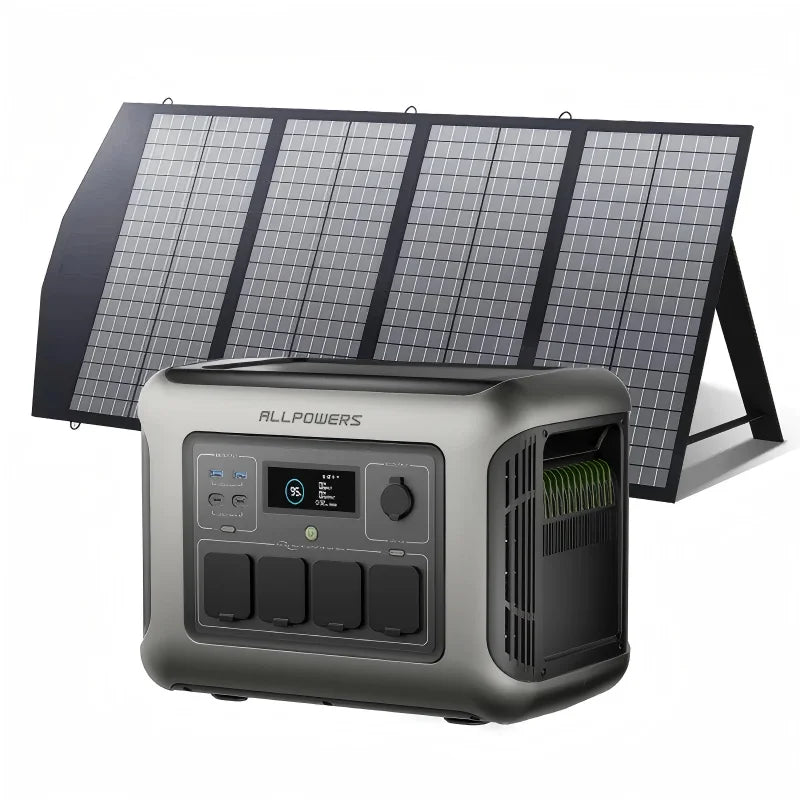

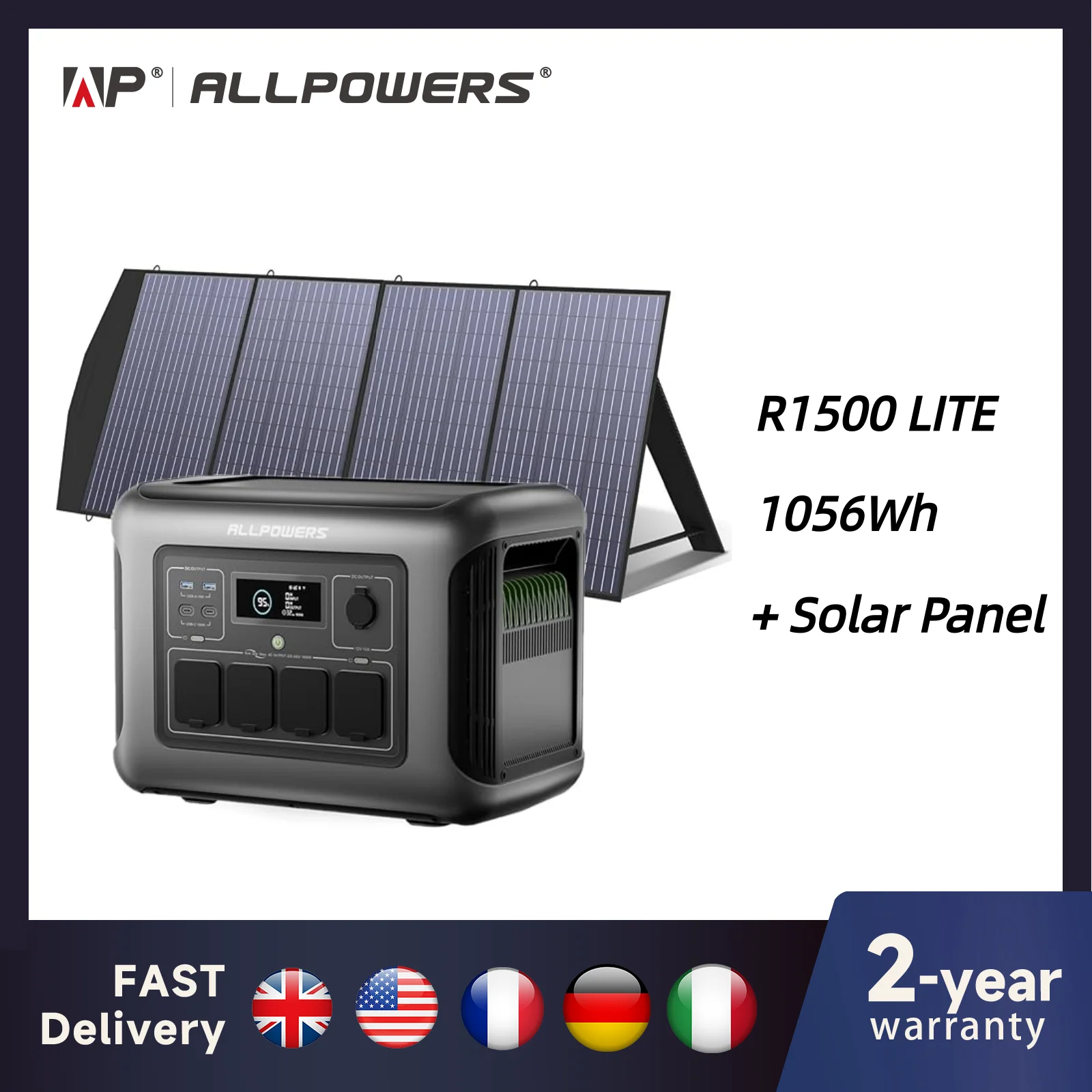

Model Number: R1500 LITE

Nominal Capacity: 1056Wh

Replacement Battery: No

Set Type: Charger Sets

Solar Input: 12-95V 13A, 650W Max

Type: LiFePO4

USB-A Output: 2x 5V==3A, 9V==2A, 12V==1.5A, 18W Max.

USB-C Output: 2x 5/9/12/15V 3A, 20V-5A, 100WMax

Wi-Fi: Support

USB-A Output: 2x 5V==3A, 9V==2A, 12V==1.5A, 18W Max.

Car Charging Output: 12V==10A, 120W Max.

Input:

AC Input: (220-240)/(110-120)V-6.8A Max

Solar Input: 12-95V 13A, 650W Max

Car Input: 12V/24V DC

Size: 41.3cm31.2cm26.5cm/16.26in12.28in10.43in

Weight: 15kg / 33.07lb

UPS: Under 15ms

App Connection: Wi-Fi / Bluetooth

【Extremely long lifespan LFP battery】: Built-in LiFePO4 battery, the maximum battery capacity is higher than 80% after 3500 cycles of charging and 50% after 6500 cycles. The R1500 LITE power station features advanced BMS protection that monitors voltage, current and temperature.

【650W Solar Fast Charging】: The ALLPOWERS R1500 LITE has an integrated MPPT charge controller for up to 650W solar input.Only one cable can be used to charge 0-80% within 40 minutes with 1200W max input. When sleeping, it supports Mute charging mode below 35 dB whisper-quiet.

【15ms Reliable UPS】: The R1500 LITE portable power station has an uninterruptible power supply (UPS) function. Switching time is 15ms when power outage, protecting your desktop PC, file server and other sensitive devices from data loss or damage.

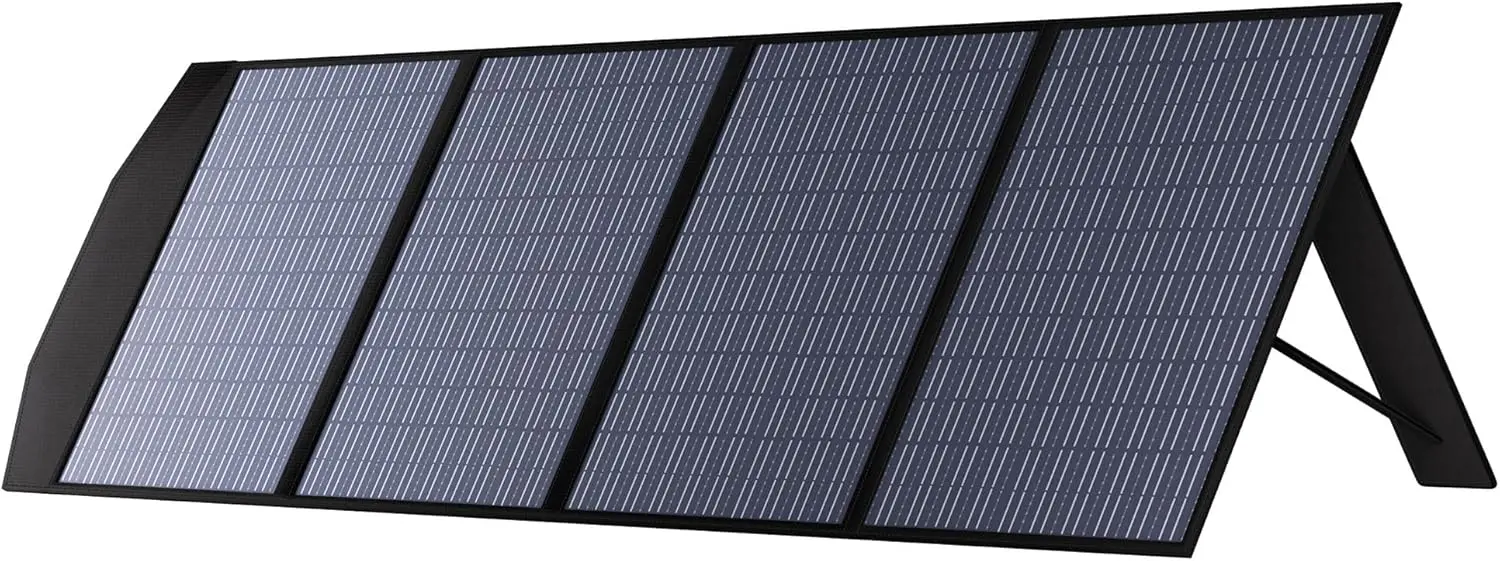

100W Solar panel

Peak Power: 100W

Open Circuit Voltage (Voc): 22.4V

Short Circuit Current (IOC): 6.0A

Maximum Power Voltage (Vmp): 18 V

Maximum Power Current (Imp): 5.4A

STC Irradiance 1000W/m²: TC=25°C, AM=1.5

Unfolded Size: 122×65×1cm

Folded Size: 55x58.5x3cm

Net Weight: 3.05KG

Material: he newest versions are monocrystalline solar panels, the pre-2025 versions are polycrystalline solar panel

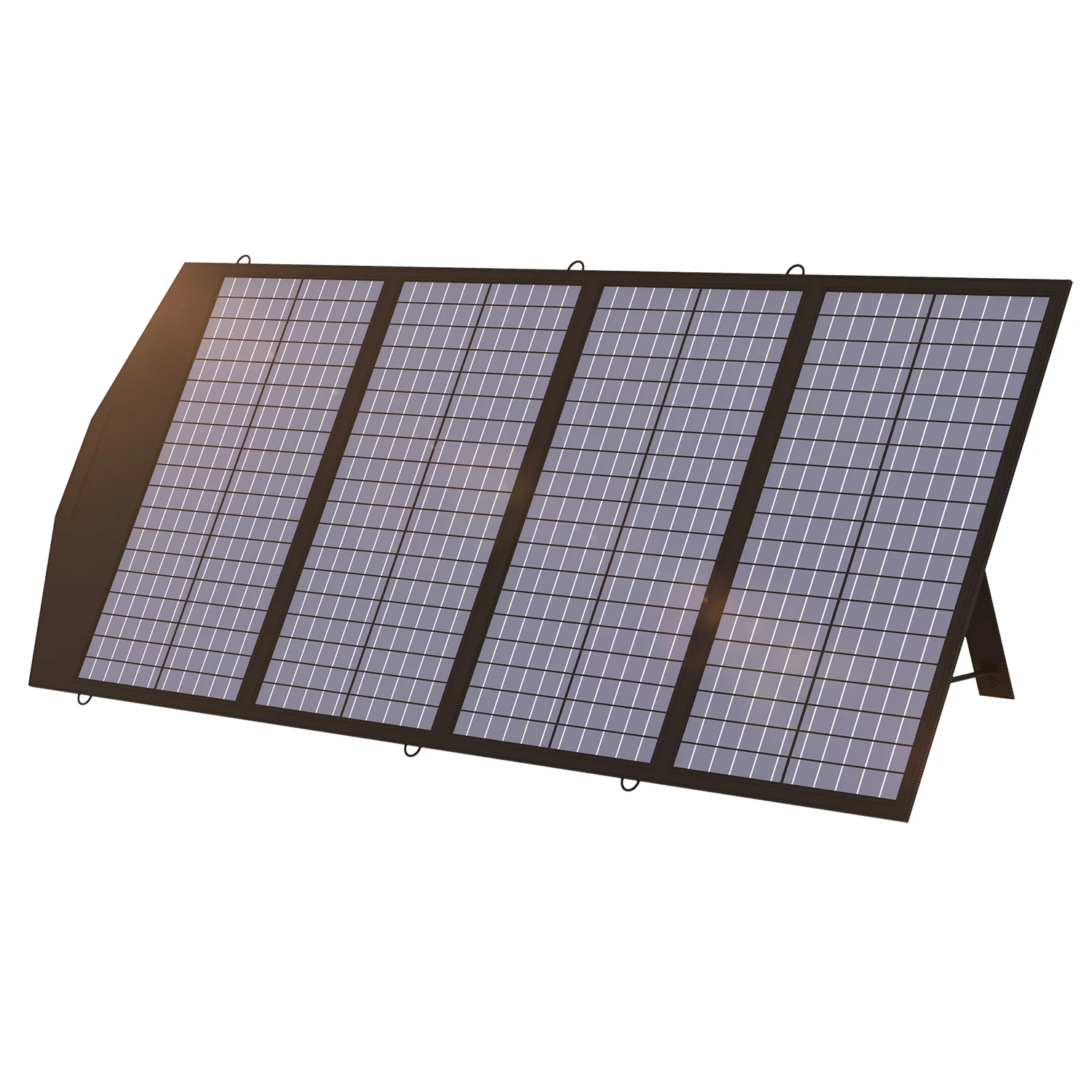

140W Solar Panel

Peak Power: 140W

Open Circuit Voltage (Voc): 23.5V

Short Circuit Current (IOC): 6.7A

Maximum Power Voltage (Vmp): 6.2A

Maximum Power Current (Imp): 19.5V

STC Irradiance 1000W/m²

Unfolded Size: 223×65cm

Folded Size: 65 x 51.5cm

Weight: 6.5kg

200W Solar panel

Peak Power: 200W ± 5%

Open Circuit Voltage (Voc): 44.4V

Short Circuit Current (IOC): 5.95A

Maximum Power Voltage (Vmp): 36.6 V

Maximum Power Current (Imp): 5.45A

Solar Energy Conversion Rate: 19%-22%

Operating Temperature: -20 ~ 60 °C/ -4 ~140 °F

All technical data at standard test condition: E=1000W/m² TC=25°C AM=1.5

Size: 2230 x 650 mm(87.8 x 25.6 in) / 650 x 515 mm(25.6 x 20.3 in)

Weight: 6.3 kg / 13.9 lb

Material: he newest versions are monocrystalline solar panels, the pre-2025 versions are polycrystalline solar panel

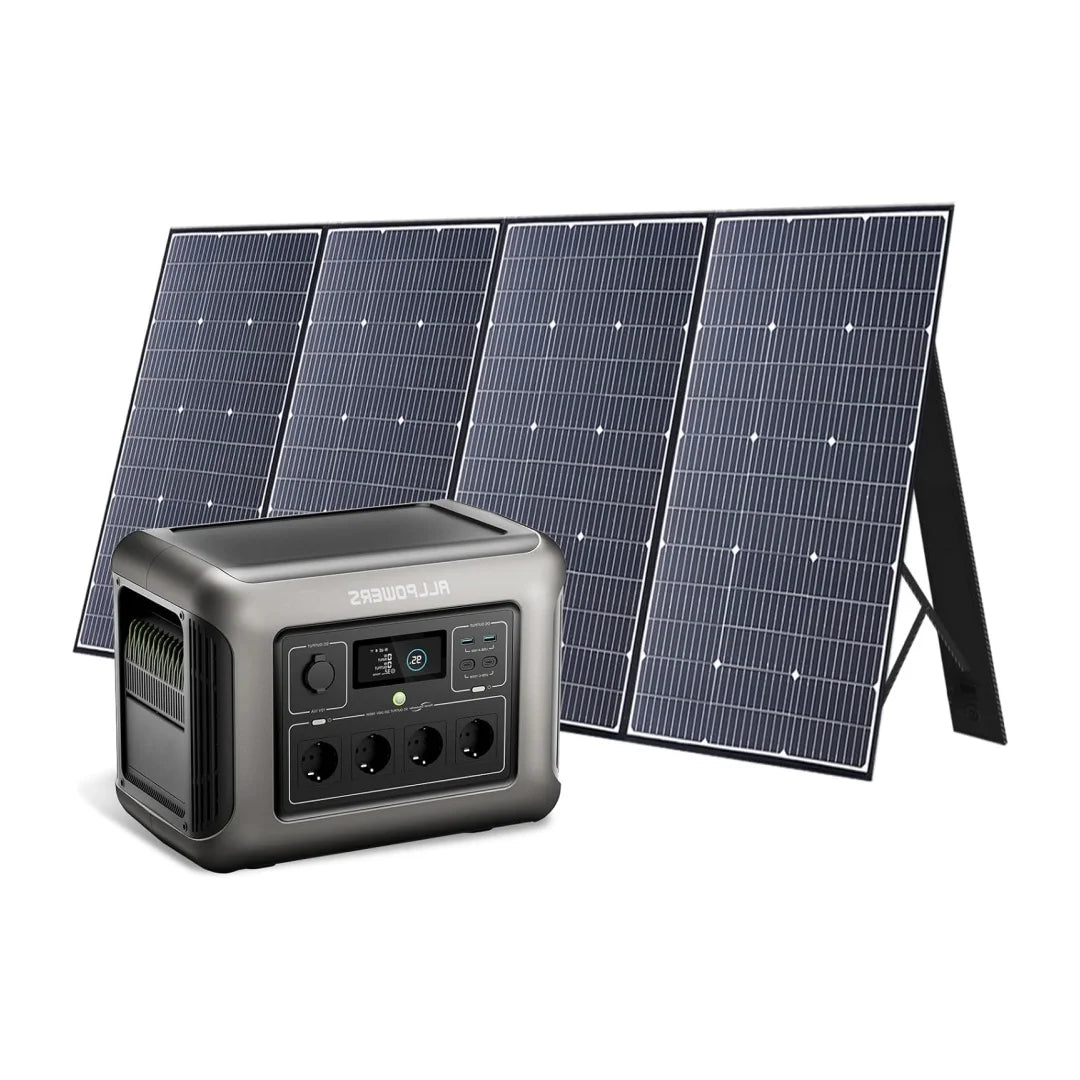

400W Solar panel

Peak Power: 400W

Cell Lamination: ETFE

Cell Type: Polycrystalline

Solar Conversion rate: 22%

Voltage at max power(Vmp): 37.4V

Open circuit voltage(OCV): 45.3V

Current at Max Power(Imp): 10.6A

Short Circuit Current(Isc): 11.45A

Weight: 47.8 pounds/ 21.4 kg

Size: 110 x 61 x 17 cm/ 40.94 x 23.62 x 4.72 inches

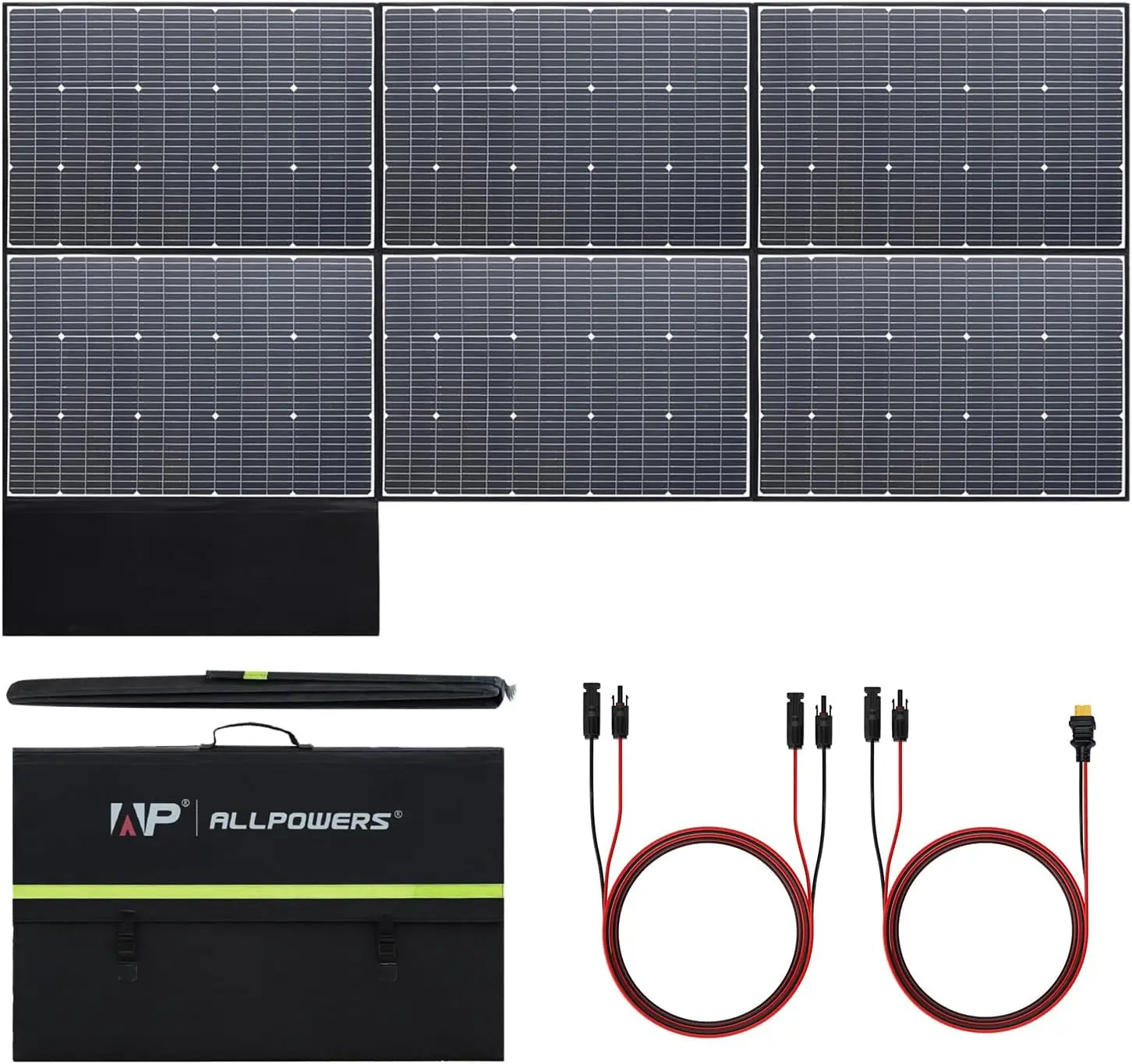

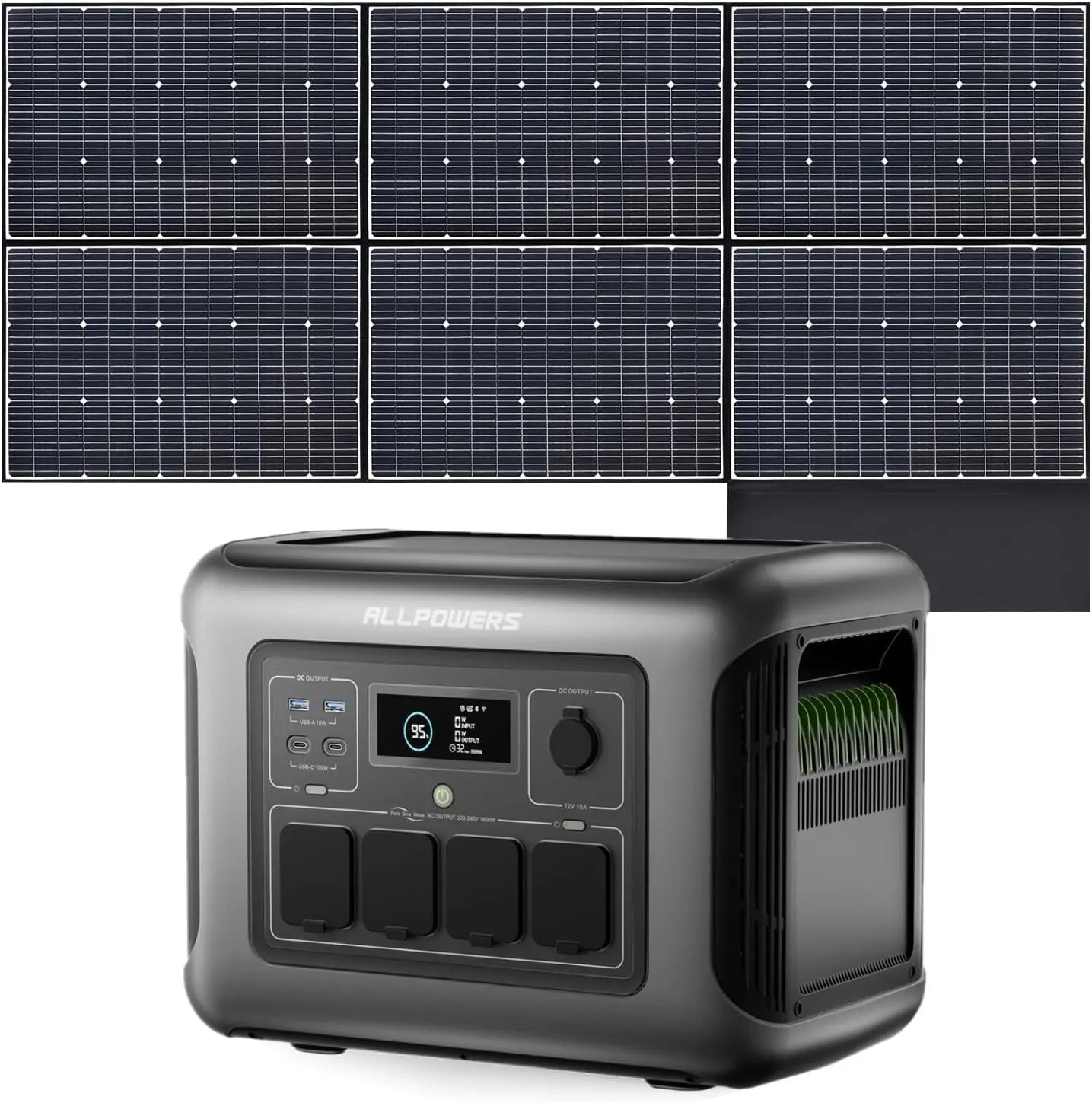

600W Solar Panel

Peak Power: 600W

Cell: Monocrystalline silicon

Solar energy conversion rate: 23%

Open Circuit Voltage (Voc): 52.8V

Short Circuit Current (Isc): 14.99A

Maximum Power Voltage (Vmp): 44V

Maximum Power Current (Imp): 13.63A

Working environment temperature: -10°C~60°C

Unfolded Size: 272.5*118.5*1cm

Folded Size:
90.5*59.5*4cm

Weight: 12.47KG/ 27.5 lbs
