SPECIFICATIONS

Certification: CE

Color: Black, White

Fuel Type: Electric

Load Capacity: 600kg/1322.7lbs

Material: Stainless Steel + Plastic

Motor Type: Brush Pure Copper Motor

Number of Propeller Blades: 3

Rated Power: 660W

Rated Voltage: 12V

Speed Control: F5-R2

Speed Regulation: Forward 5 Gears, Reverse 2 Gears

Suitable Ship Length: 2-4m/6.6-13.1ft

Thrust: 30kg/66lbs

Specifications

Material: Stainless Steel + Plastic

Color: Black, White

Model: ET65L

Fuel Type: Electric

Control Handle: Telescopic Type

Speed Control: F5-R2

Motor Type: Brush Pure Copper Motor

Number of Propeller Blades: 3

Speed Regulation: Forward 5 Gears, Reverse 2 Gears

Thrust: 30kg/66lbs

Rated Voltage: 12V

Rated Speed: 1420R/min

Rated Current: 55A

Rated Power: 660W

Maximum Speed: 6-8km/h(3.7-5mile/h)

Propeller Model: 3 leaves, 20cm/7.87in

Noise: 50db

Clamping Spacing: 9cm/3.54in

Suitable Ship Length: 2-4m/6.6-13.1ft

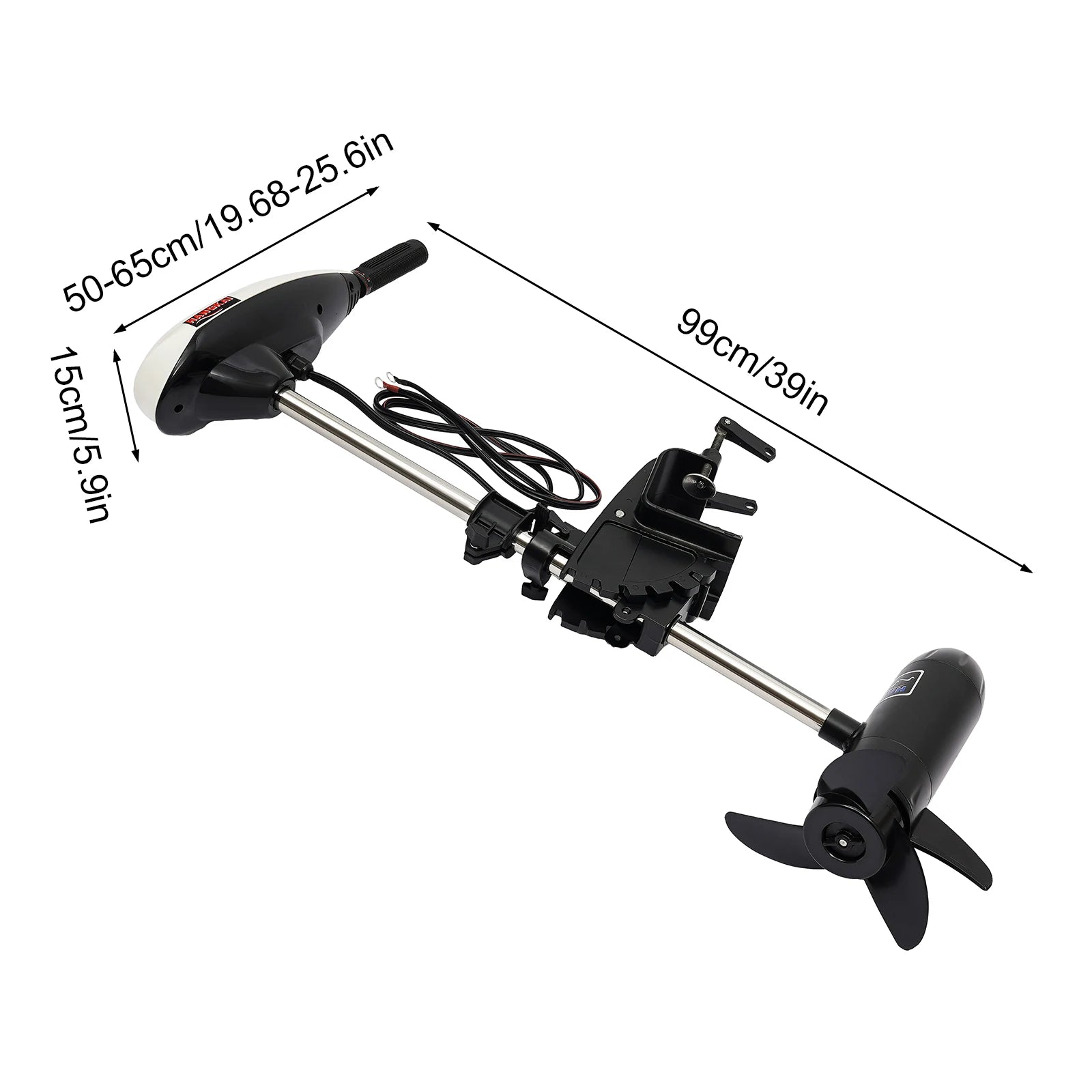

Handle Length: 50-65cm/19.68-25.6in

Packing Size: 104*57*17cm/40.94*22.44*6.69in

Gross Weight: 11.35kg/25.02lbs

Net Weight: 10kg/22lbs

Load Capacity: 600kg/1322.7lbs

Package Included

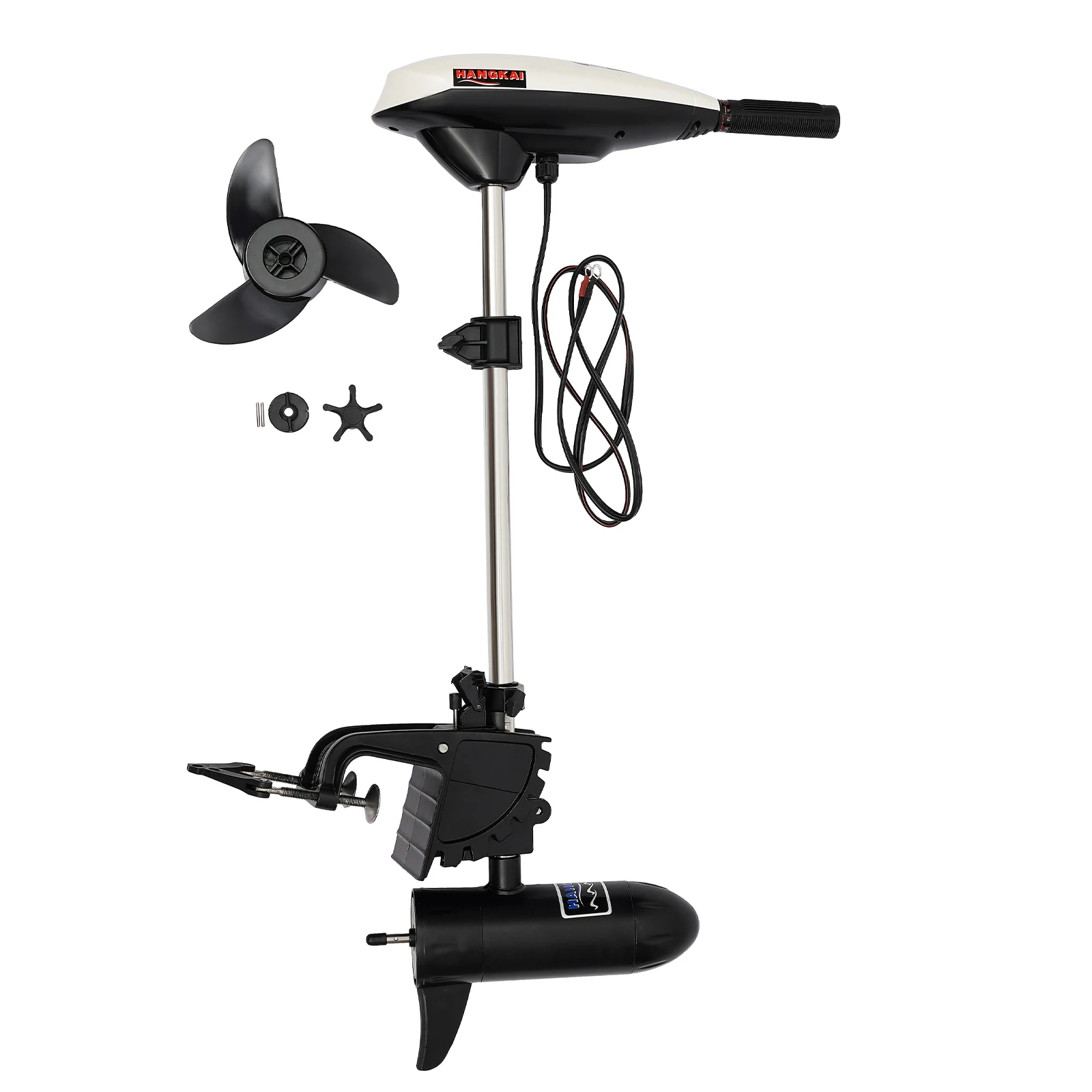

1* Electric Outboard Motor

1* English Manual

1* Propeller

All Needed Accessories

Description

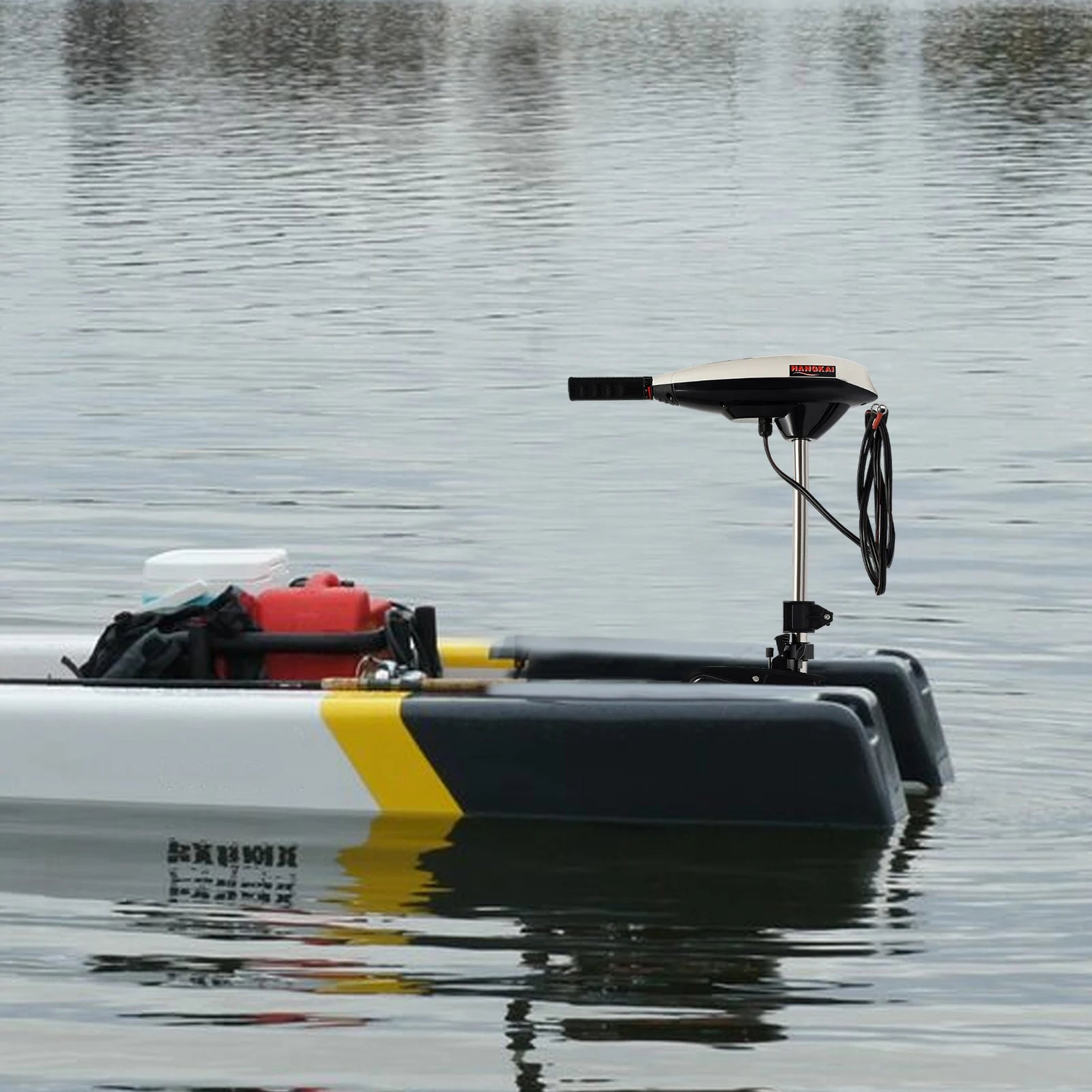

Do you like fishing on the river? Do you want to go boating with your family? This electric outboard motor will be the best choice for you to enjoy your cruise. All you need to do is install it in the stern of your boat, and you can enjoy a fast and easy-to-operate water journey!

Key Features

Robust and Durable: Made of high-quality stainless steel and plastic, it is very robust, wear-resistant, rust-proof and corrosion-resistant, ensuring a long service life and good adaptability to the seawater environment.

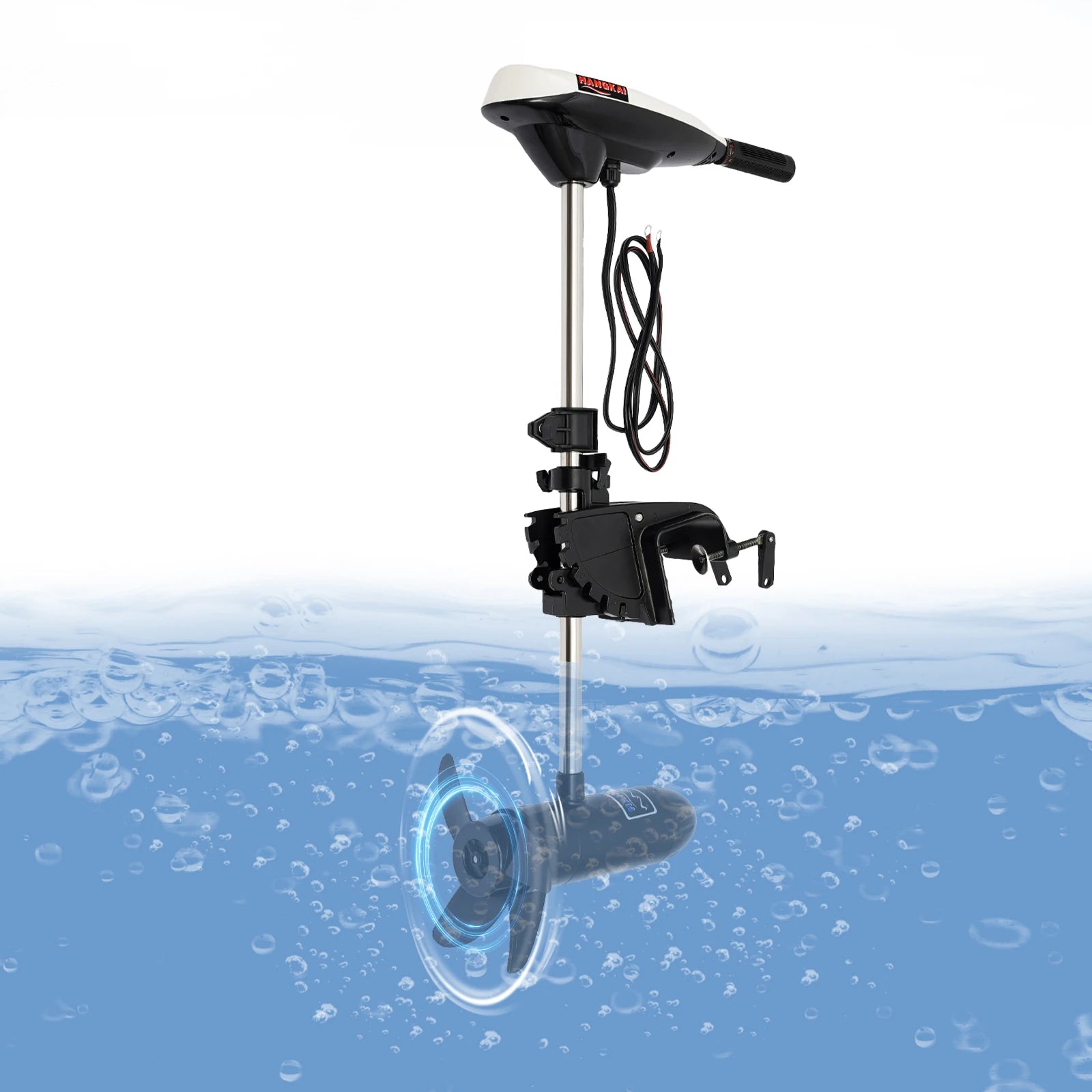

Adjustable Angle: The tilt angle of the main shaft can be adjusted within 90° to suit different water depths and greatly reduce the possibility of underwater rocks hitting the motor.

Adjustable Gears: With 5 forward and 2 reverse gears, you can switch speeds and change direction smoothly while driving. It also has one-touch cruise control for your convenience.

Electric Drive: Compared to petrol engines, this electrically powered outboard is quieter (50db), without exhaust emissions and with less heat loss, making it more environmentally friendly and efficient.

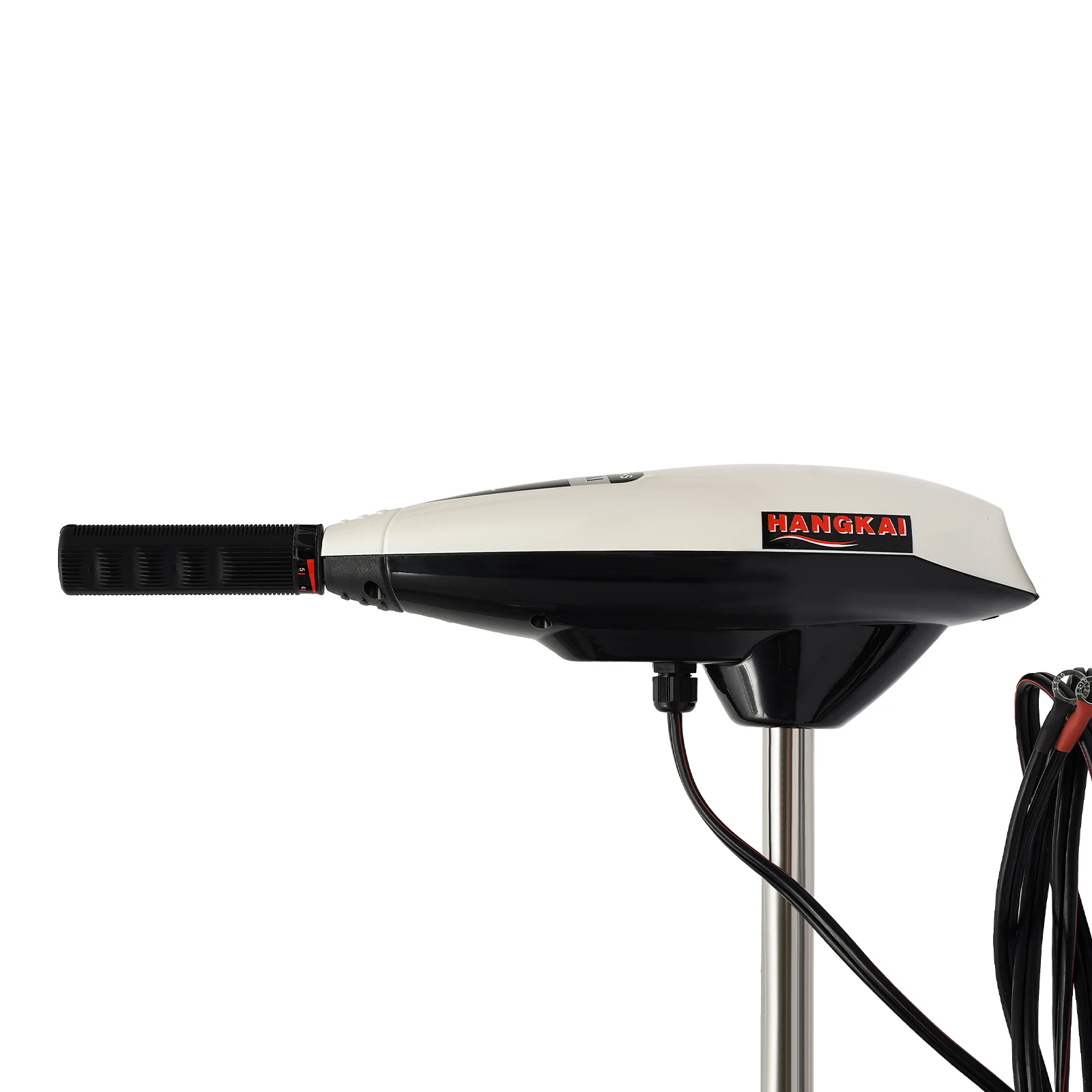

Adjustable Design: The height and angle of the suspension bracket can be adjusted, adapting well to personnel driving ships at different heights; In addition, the retractable control handle can be selected to the appropriate length according to your operating habits.

Easy to Carry: This compact and light outboard engine can be easily carried and moved around.

Strong Power: The 660w brush pure copper motor, with a thrust force of up to 66lbs and a max. Speed of 6-8km/h(The speed will vary depending on the environment, the water and the load of the boat), will provide strong power for stable and fast driving.

Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

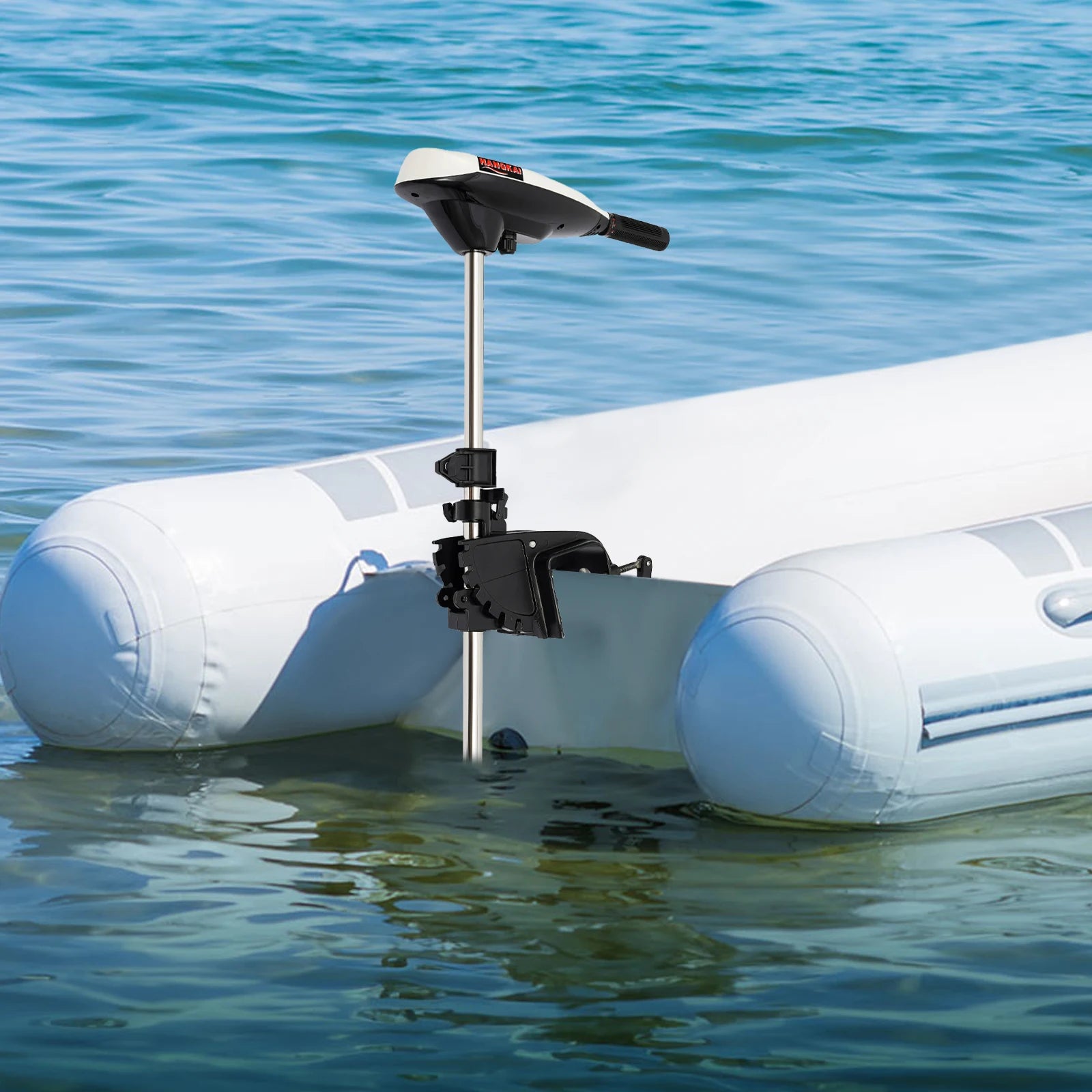

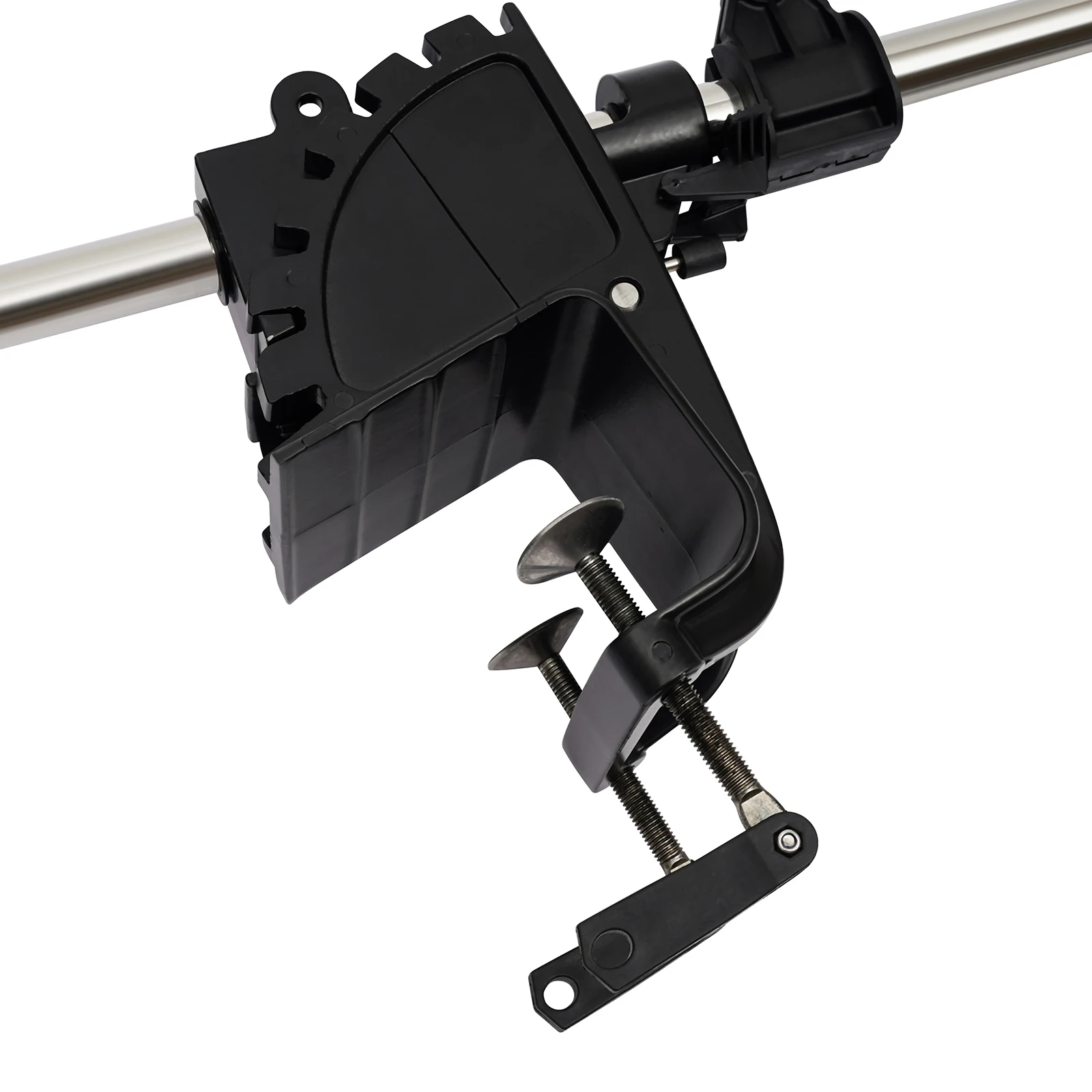

Mounting Clamp: The mounting clamp allows the outboard engine to be securely suspended on the stern plate within a thickness of 3.54in.

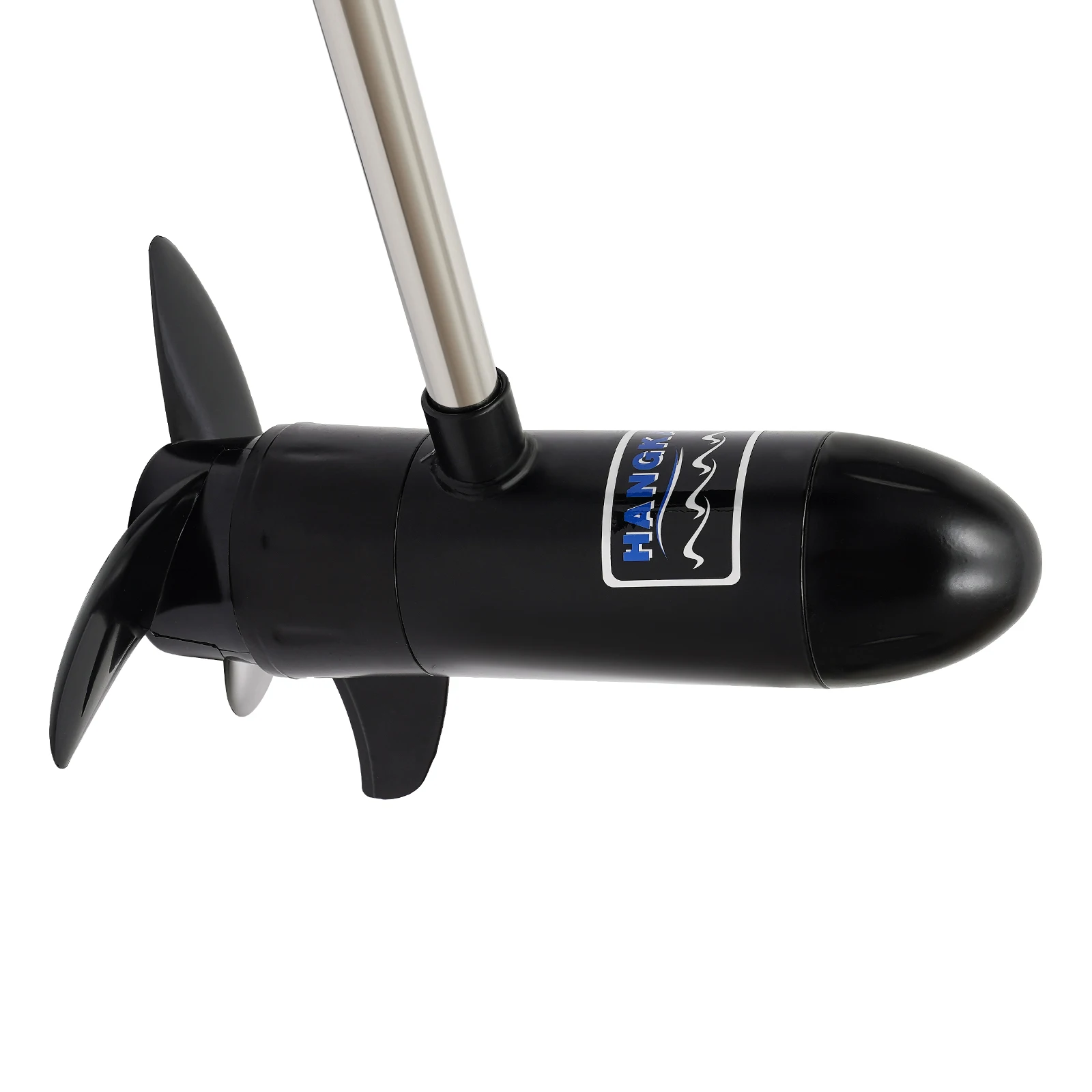

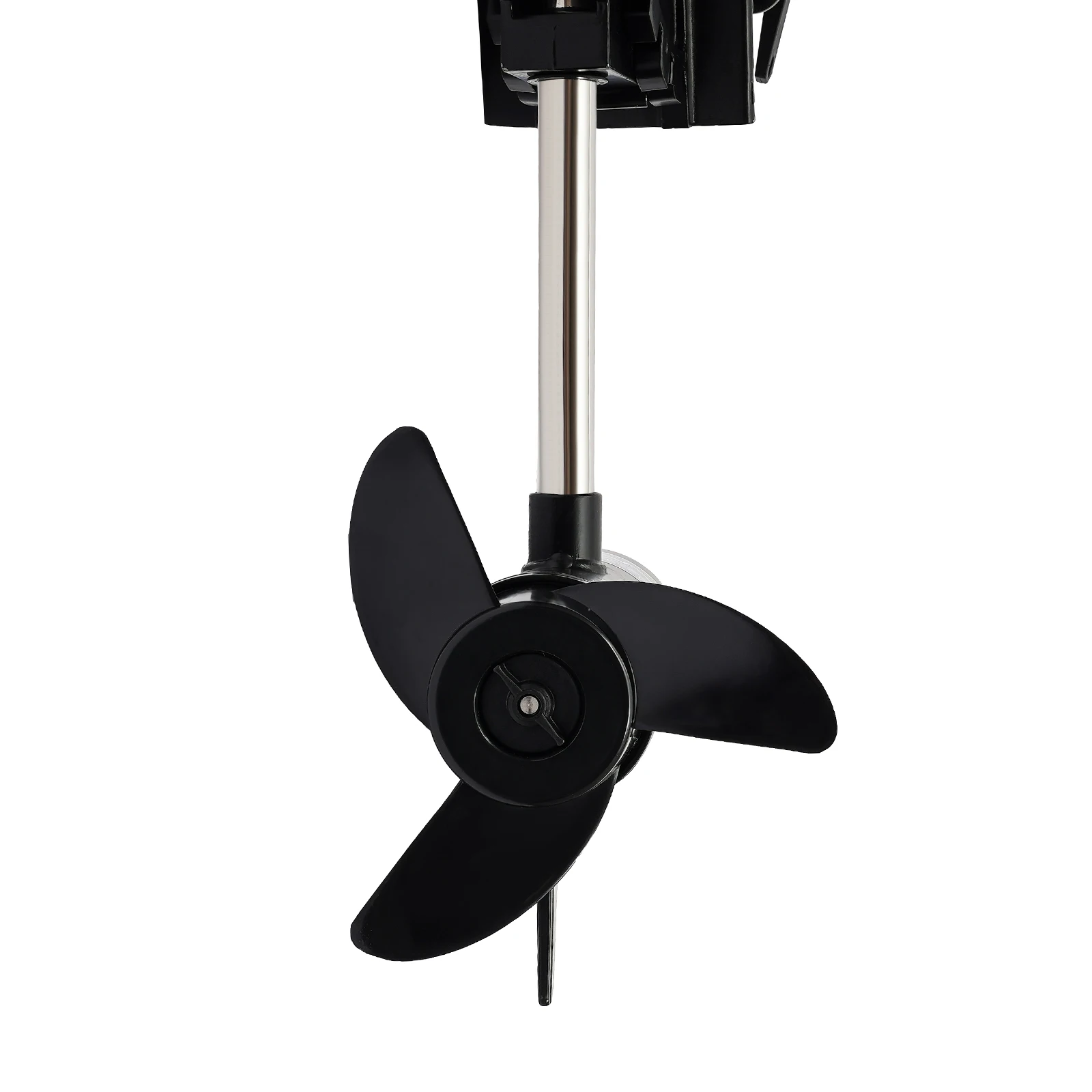

Three-blade Propeller: A streamlined three-blade propeller reduces drag and balances thrust for optimum performance.

Application

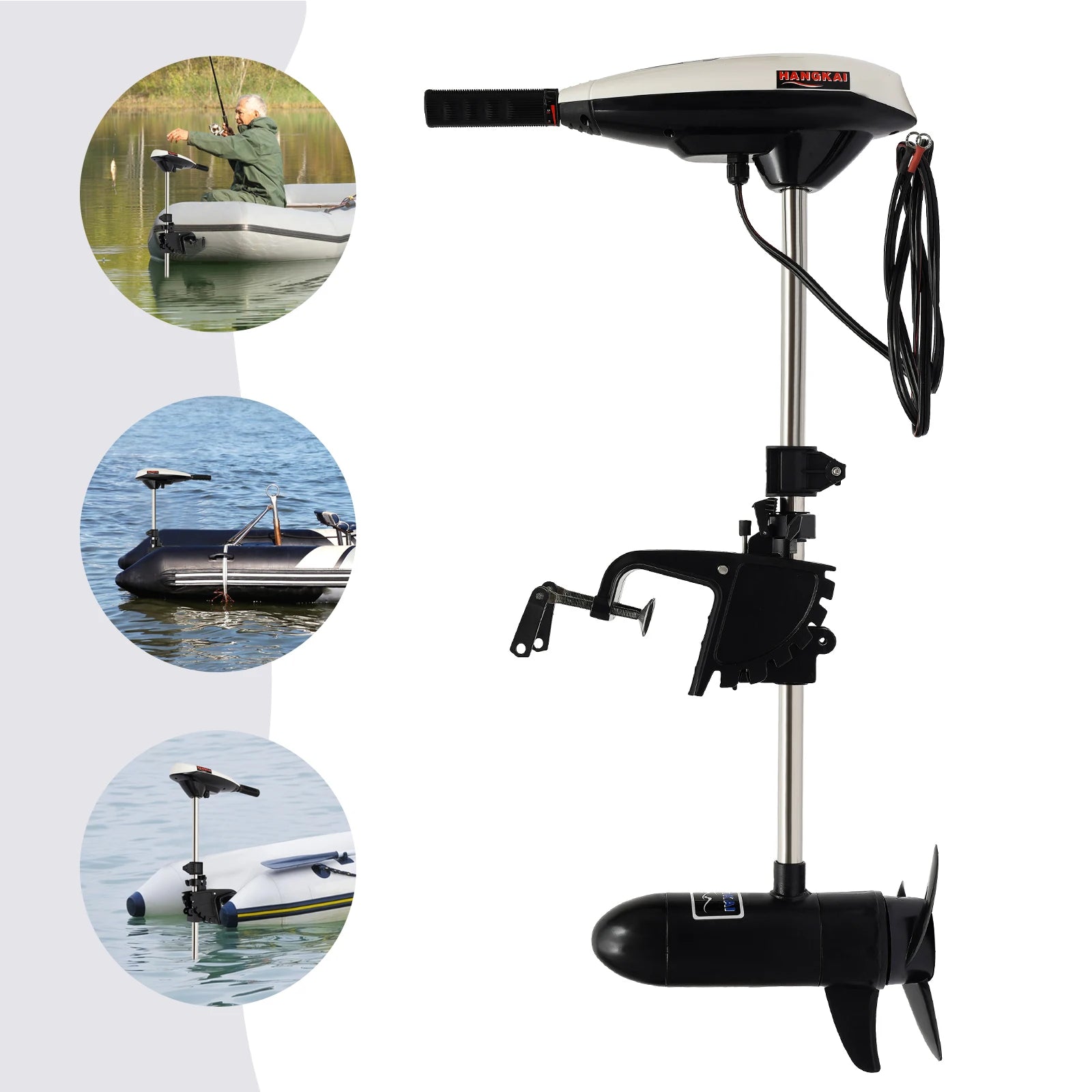

This electric outboard motor is suitable for small boats of 6.6-13.1ft and up to 1322.7lbs, and is widely used in fisheries, aquaculture, outdoor sightseeing and other fields.

Notes

1. The 12V 100Ah battery can be used for 3 hours, you can choose the corresponding ampere hour battery according to the usage time. Please note that the battery is not included in the package, and you can buy it at the local battery store.

2. Please do not start the motor on the shore where there is a lack of water. Even if you want to test the motor, you should do it in the river!

3. Remember to wash the motor using fresh water after using it in salt water as it can greatly reduce the possibility of corrosion.

4. When shifting, please step by step and do not accelerate suddenly, otherwise, the service life of the product will be affected.

5. Please note that the driving speed will change due to different ship types, loads, and natural conditions.

6. Please remove the debris around the propeller before replacing the propeller. Always disconnect the power supply of the motor

7. Please read the manual completely before installation and use, and pay particular attention to the safety instructions included.

8. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
